LAT-TKR Monitor Report

runID: 544526597
intput file: /scratch/16617/r0544526597_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2018/04/04, 09:23:20
Duration: 4502 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.5%
Layer displacement from reference [micron]	NOTE layer displacement, | -33.0/5.3 | > 5.0: Tower 0 Layer Y1 layer displacement, | 41.3/6.1 | > 5.0: Tower 0 Layer Y2 layer displacement, | -33.2/5.9 | > 5.0: Tower 0 Layer Y3
Number of Dead GTFE	ERR Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [201]: Tower 2 Layer X17 trig-mask required: strip [180]: Tower 3 Layer Y17 trig-mask required: strip [564, 1343, 521, 200, 580, 582, 522, 571, 169, 550, 193, 565, 1377, 575, 1277, 577, 1338, 228, 250, 560, 556, 520, 177, 955, 159, 959, 1370, 932, 602, 1354, 176, 1390, 551, 1274, 162, 184, 574, 573, 594, 188, 558, 540, 597, 1333, 576, 182, 986, 583, 947, 155, 485, 568, 174, 189, 559, 949, 1340, 929, 557, 126, 1366, 513, 1272, 144, 167, 968, 1346, 255, 549, 895, 166, 196, 1360, 511, 581, 497, 233, 190, 1326, 1350, 486, 938, 532, 1328, 187, 491, 1384, 544, 1279, 508, 569, 974, 542, 252, 515, 538, 215, 506, 950, 572, 504, 192, 214, 537, 1364, 161, 1336, 183, 1323, 1345, 116, 546, 1341, 165, 519, 181, 971, 1365, 586, 939, 1269, 966, 172, 951, 1380, 220, 1373, 1339, 935, 1275, 208, 173, 1311, 198, 1386, 180, 148, 547, 531, 1322, 601, 954]: Tower 4 Layer Y0 trig-mask required: strip [976, 1020, 973, 968, 1006, 970, 990, 962, 983, 988, 971, 1005, 987, 829, 994, 923, 992, 889, 868, 1047, 989, 963, 1027, 917, 866, 966, 982, 998, 1022, 1023, 1004, 1021, 1061, 888, 1018, 979, 1015, 891, 1017, 878, 972, 849, 860, 1013, 1010, 999, 1009, 886, 1096, 964, 1000, 969, 1076, 1025, 985, 1012, 853, 967, 1043, 991, 995, 1019, 978, 993, 941, 1001, 997, 899, 960, 869, 892, 1003, 893, 974, 1002, 920, 884, 885, 864, 981, 865, 879, 1034, 1086, 910, 874, 1007, 921, 845, 812, 890, 811, 870, 895, 855, 1087, 1011, 887, 1049, 863, 986, 1062, 902, 1030, 975, 1053, 880, 1016, 1059, 1064, 932, 925, 856, 1014, 807, 875, 1026, 980, 1008, 913, 1029, 859, 826, 881]: Tower 5 Layer X0 trig-mask required: strip [985, 987]: Tower 7 Layer Y9 data-mask required: strip [201]: Tower 2 Layer X17 data-mask required: strip [180]: Tower 3 Layer Y17 data-mask required: strip [985, 987]: Tower 7 Layer Y9
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 2.4e-01 > 8.0e-02: Tower 4 Layer Y0 layer Occucpancy, 3.3e-01 > 8.0e-02: Tower 5 Layer X0

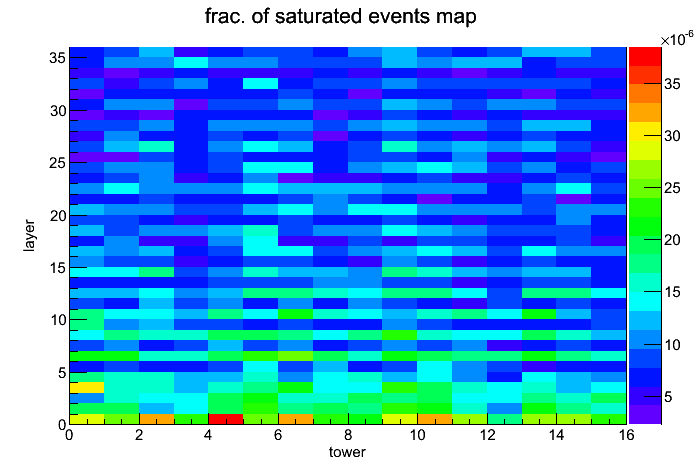

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 80.8% < 90.0%: Tower 0 Layer X1 layer efficiency, 81.2% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
