LAT-TKR Monitor Report

runID: 532783489
intput file: /scratch/20757/r0532783489_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2017/11/19, 11:24:52
Duration: 2656 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.3%

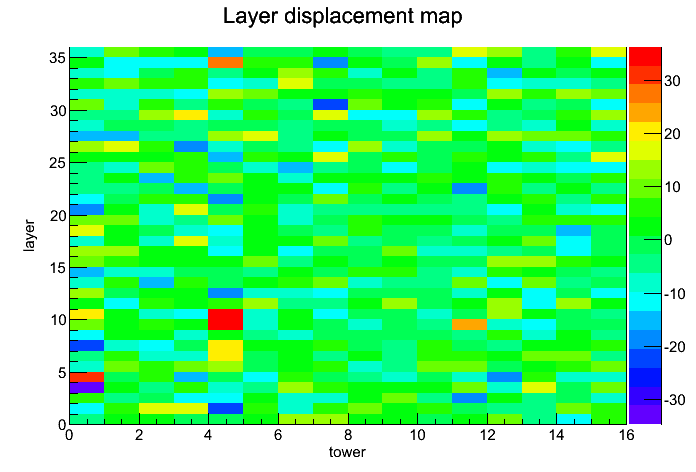

Layer displacement from reference [micron]	NOTE layer displacement, | -34.8/6.0 | > 5.0: Tower 0 Layer Y1 layer displacement, | 36.2/7.2 | > 5.0: Tower 4 Layer X4
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [177]: Tower 3 Layer Y17 trig-mask required: strip [51]: Tower 12 Layer X10 data-mask required: strip [177]: Tower 3 Layer Y17 data-mask required: strip [51]: Tower 12 Layer X10
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

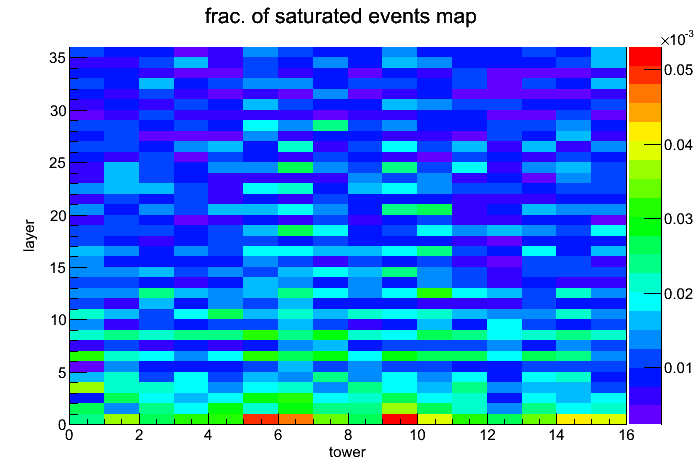

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 85.7% < 90.0%: Tower 0 Layer Y4 layer efficiency, 80.8% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
