LAT-TKR Monitor Report

runID: 528001828
intput file: /scratch/20778/r0528001828_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2017/09/25, 03:10:31
Duration: 4671 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%

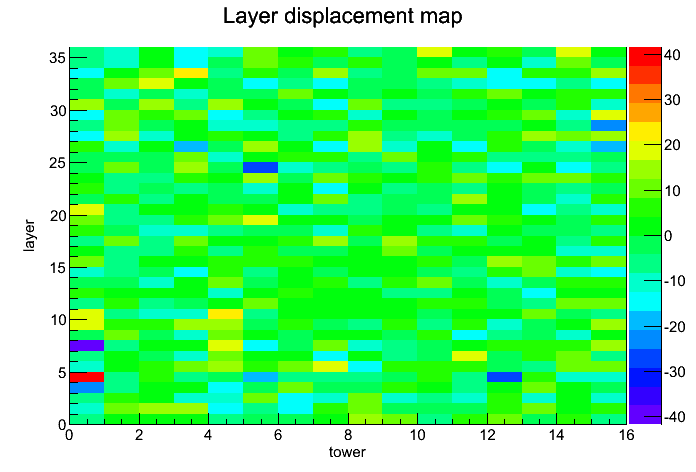

Layer displacement from reference [micron]	NOTE layer displacement, | 41.5/7.2 | > 5.0: Tower 0 Layer Y2 layer displacement, | -41.7/7.0 | > 5.0: Tower 0 Layer Y3 layer displacement, | -29.3/4.3 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1030]: Tower 2 Layer X9 trig-mask required: strip [239]: Tower 3 Layer Y17 data-mask required: strip [1030]: Tower 2 Layer X9 data-mask required: strip [239]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

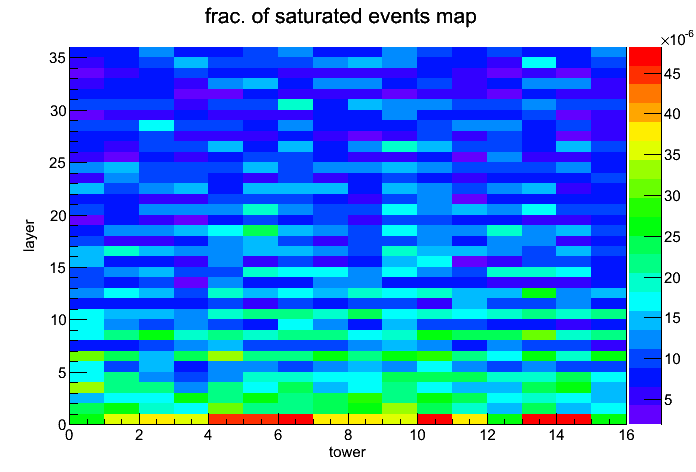

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 87.9% < 90.0%: Tower 0 Layer Y4 layer efficiency, 82.4% < 90.0%: Tower 3 Layer Y17 layer efficiency, 86.1% < 90.0%: Tower 9 Layer Y0
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.7: Tower 4 Layer Y0 TOT peak outlier: 3.6: Tower 5 Layer X0 TOT peak outlier: 4.1: Tower 7 Layer Y7
