LAT-TKR Monitor Report

runID: 513325310
intput file: /scratch/20935/r0513325310_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2017/04/08, 06:21:53
Duration: 5692 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Layer displacement from reference [micron]	NOTE layer displacement, | -32.2/4.5 | > 5.0: Tower 0 Layer Y1 layer displacement, | 31.5/5.1 | > 5.0: Tower 0 Layer Y2 layer displacement, | -27.8/4.6 | > 5.0: Tower 0 Layer Y3 layer displacement, | 24.9/4.6 | > 5.0: Tower 2 Layer Y16 layer displacement, | 20.2/3.8 | > 5.0: Tower 3 Layer X14 layer displacement, | 25.3/4.0 | > 5.0: Tower 4 Layer X3 layer displacement, | -19.4/3.4 | > 5.0: Tower 6 Layer Y12 layer displacement, | -18.0/3.1 | > 5.0: Tower 12 Layer Y2 layer displacement, | -25.3/3.8 | > 5.0: Tower 12 Layer X6 layer displacement, | 22.0/4.0 | > 5.0: Tower 14 Layer Y5
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1136]: Tower 3 Layer X13 trig-mask required: strip [132]: Tower 3 Layer Y17 data-mask required: strip [1136]: Tower 3 Layer X13 data-mask required: strip [132]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.6e-02 > 8.0e-02: Tower 3 Layer Y17

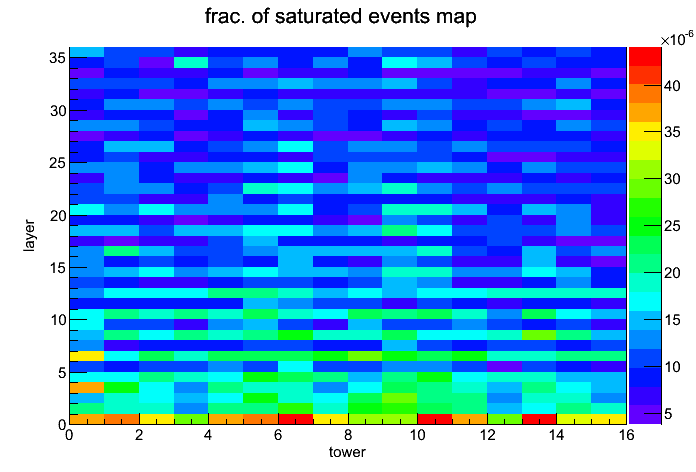

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 83.3% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.3: Tower 0 Layer X7
