LAT-TKR Monitor Report

runID: 509473045
intput file: /scratch/17712/r0509473045_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2017/02/22, 16:17:28
Duration: 4522 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.6%
Layer displacement from reference [micron]	NOTE layer displacement, | -38.2/7.2 | > 5.0: Tower 0 Layer Y3
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [345]: Tower 8 Layer X8 data-mask required: strip [345]: Tower 8 Layer X8
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 3.9e-01 > 8.0e-02: Tower 8 Layer X8

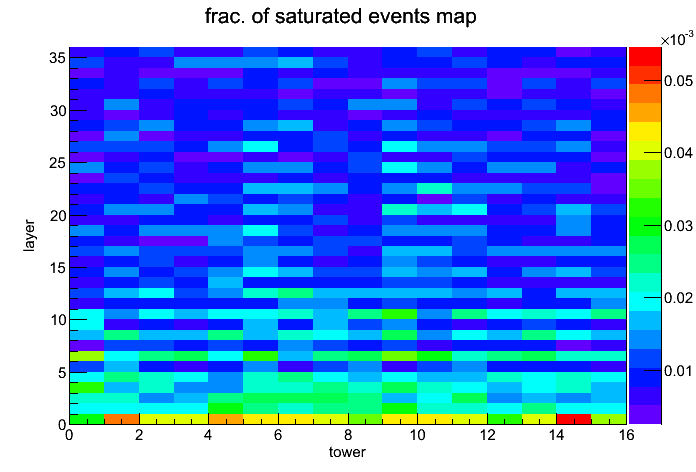

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.3% < 90.0%: Tower 0 Layer Y4 layer efficiency, 81.8% < 90.0%: Tower 3 Layer Y17 layer efficiency, 87.9% < 90.0%: Tower 9 Layer Y0
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.0: Tower 3 Layer X9 TOT peak outlier: 3.6: Tower 10 Layer Y0 TOT peak outlier: 3.7: Tower 11 Layer X11 TOT peak outlier: 3.5: Tower 14 Layer X0
