LAT-TKR Monitor Report

runID: 506619945
intput file: /scratch/24829/r0506619945_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2017/01/20, 15:45:48
Duration: 5840 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Layer displacement from reference [micron]	NOTE layer displacement, | -26.9/5.2 | > 5.0: Tower 0 Layer Y3 layer displacement, | -20.0/4.0 | > 5.0: Tower 3 Layer X11 layer displacement, | 24.3/4.7 | > 5.0: Tower 4 Layer X3
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

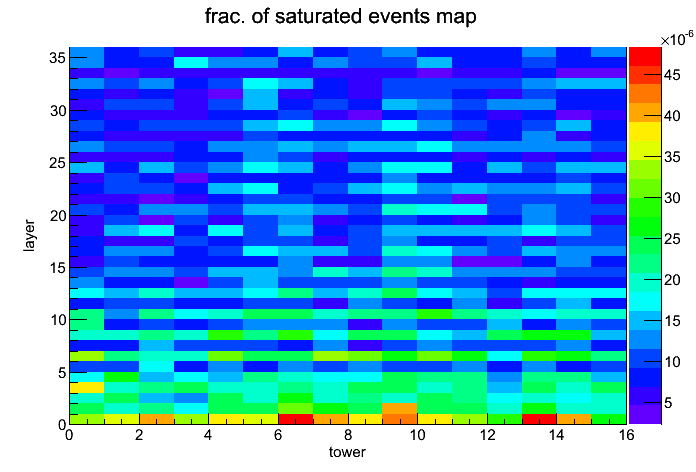

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 83.7% < 90.0%: Tower 0 Layer Y3 layer efficiency, 88.9% < 90.0%: Tower 0 Layer Y4 layer efficiency, 87.1% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.3: Tower 0 Layer X7
