LAT-TKR Monitor Report

runID: 498133414
intput file: /scratch/3413/r0498133414_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2016/10/14, 10:23:37
Duration: 4299 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Layer displacement from reference [micron]	NOTE layer displacement, | 43.9/8.2 | > 5.0: Tower 0 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [113]: Tower 3 Layer Y17 data-mask required: strip [113]: Tower 3 Layer Y17
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.7e-02 > 8.0e-02: Tower 3 Layer Y17

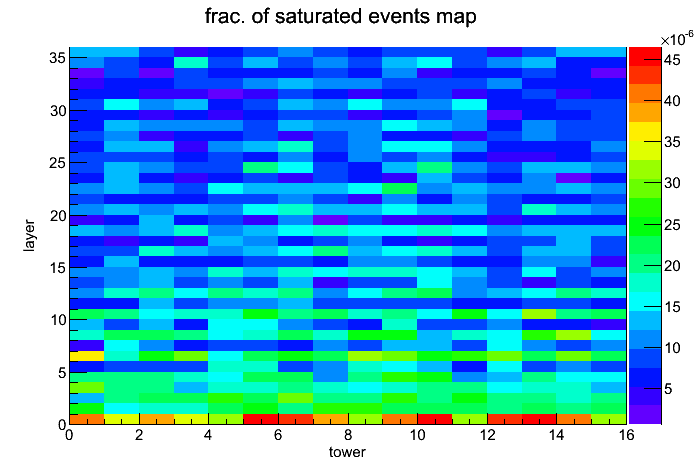

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.9% < 90.0%: Tower 0 Layer X1 layer efficiency, 78.3% < 90.0%: Tower 3 Layer Y17 layer efficiency, 88.2% < 90.0%: Tower 9 Layer Y0
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.9: Tower 1 Layer X10 TOT peak outlier: 3.6: Tower 3 Layer Y0 TOT peak outlier: 4.0: Tower 6 Layer Y0 TOT peak outlier: 4.2: Tower 9 Layer Y1 TOT peak outlier: 3.1: Tower 12 Layer Y0
