LAT-TKR Monitor Report

runID: 476702608
intput file: /scratch/19310/r0476702608_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2016/02/09, 09:23:31
Duration: 5695 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Layer displacement from reference [micron]	NOTE layer displacement, | -41.0/4.4 | > 5.0: Tower 0 Layer Y1 layer displacement, | 30.7/5.3 | > 5.0: Tower 0 Layer Y2 layer displacement, | 21.4/4.0 | > 5.0: Tower 0 Layer X5 layer displacement, | -27.6/4.8 | > 5.0: Tower 4 Layer X0 layer displacement, | 19.6/3.9 | > 5.0: Tower 4 Layer X3 layer displacement, | -16.3/3.3 | > 5.0: Tower 6 Layer Y12 layer displacement, | -16.3/3.2 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1358]: Tower 12 Layer Y15 data-mask required: strip [1358]: Tower 12 Layer Y15
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.6e-02 > 8.0e-02: Tower 12 Layer Y15

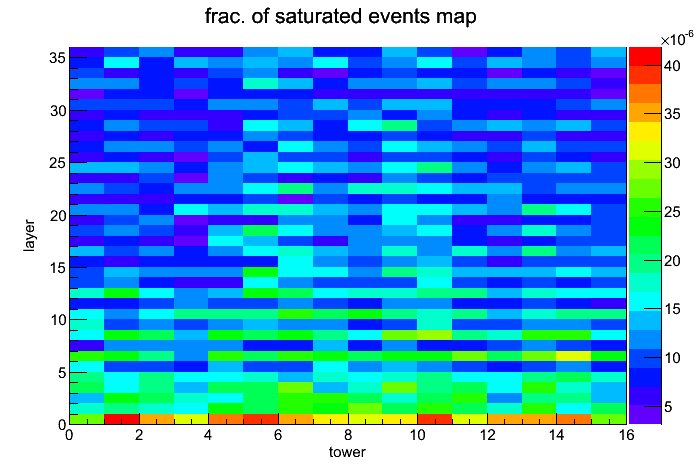

Fraction of Saturated Events
Layer averaged hit inefficinecy
Layer averaged TOT peak distribution
