LAT-TKR Monitor Report

runID: 471165260
intput file: /scratch/12175/r0471165260_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2015/12/07, 07:14:23
Duration: 4581 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%

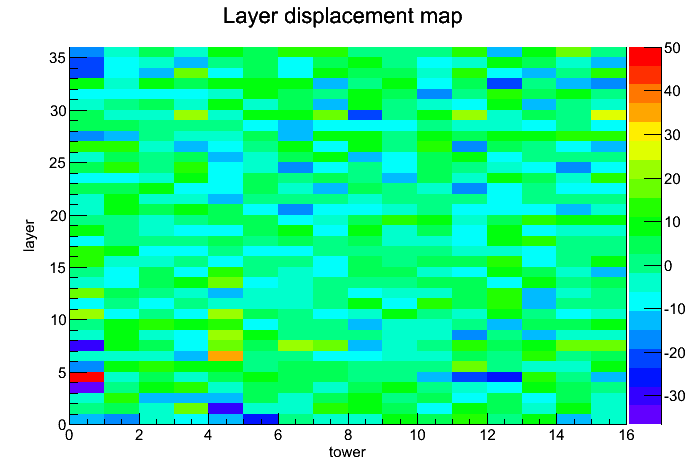

Layer displacement from reference [micron]	NOTE layer displacement, | -36.6/7.3 | > 5.0: Tower 0 Layer Y1 layer displacement, | 50.0/7.4 | > 5.0: Tower 0 Layer Y2 layer displacement, | -25.6/4.9 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.6%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

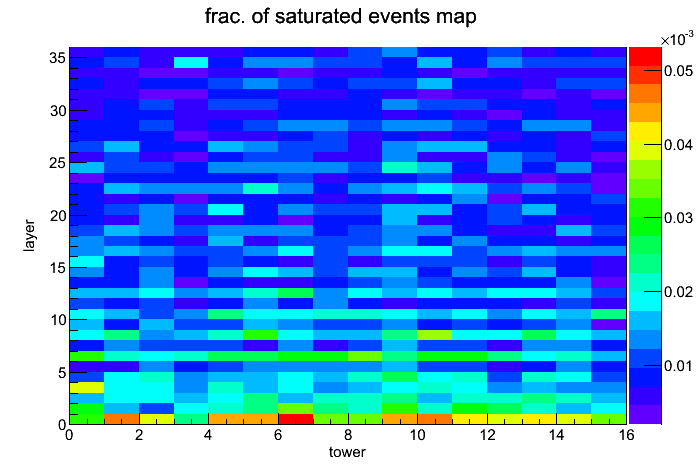

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 85.2% < 90.0%: Tower 0 Layer Y0 layer efficiency, 85.0% < 90.0%: Tower 0 Layer Y4 layer efficiency, 83.3% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution
