LAT-TKR Monitor Report

runID: 471153337
intput file: /scratch/2847/r0471153337_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2015/12/07, 03:55:40
Duration: 4204 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%

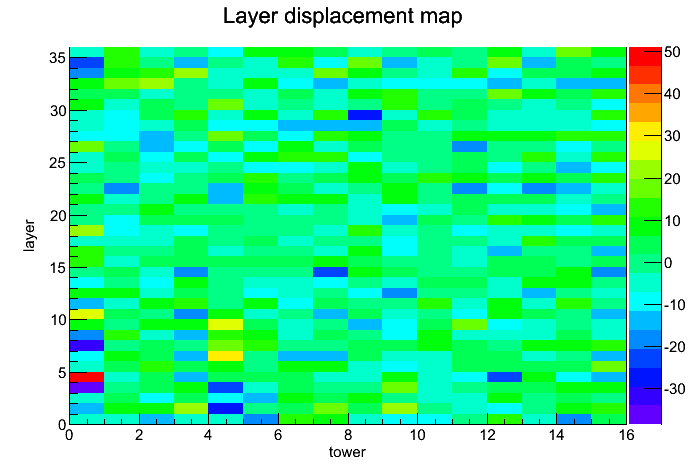

Layer displacement from reference [micron]	NOTE layer displacement, | -38.5/7.7 | > 5.0: Tower 0 Layer Y1 layer displacement, | 51.0/7.6 | > 5.0: Tower 0 Layer Y2 layer displacement, | -24.4/4.8 | > 5.0: Tower 12 Layer Y2
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

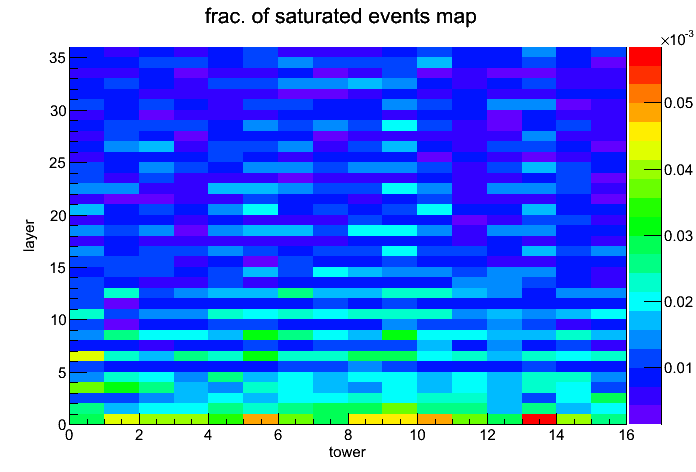

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.5% < 90.0%: Tower 0 Layer X1 layer efficiency, 89.7% < 90.0%: Tower 0 Layer Y4 layer efficiency, 88.9% < 90.0%: Tower 0 Layer X7 layer efficiency, 79.3% < 90.0%: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.3: Tower 0 Layer Y0 TOT peak outlier: 3.8: Tower 0 Layer Y1 TOT peak outlier: 3.8: Tower 4 Layer Y0 TOT peak outlier: 3.4: Tower 10 Layer Y0 TOT peak outlier: 3.8: Tower 13 Layer X0 TOT peak outlier: 3.5: Tower 14 Layer Y1
