LAT-TKR Monitor Report

runID: 468704460
intput file: /scratch/8649/r0468704460_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2015/11/08, 19:41:03
Duration: 4365 seconds
Script version: 1.22
Script tag: calibTkrUtil-03-00-00

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Layer displacement from reference [micron]	NOTE layer displacement, | -43.0/6.9 | > 5.0: Tower 0 Layer Y1 layer displacement, | 47.3/7.8 | > 5.0: Tower 0 Layer Y2 layer displacement, | -40.8/6.3 | > 5.0: Tower 0 Layer Y3
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
Layer averaged Strip Occupancy
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy

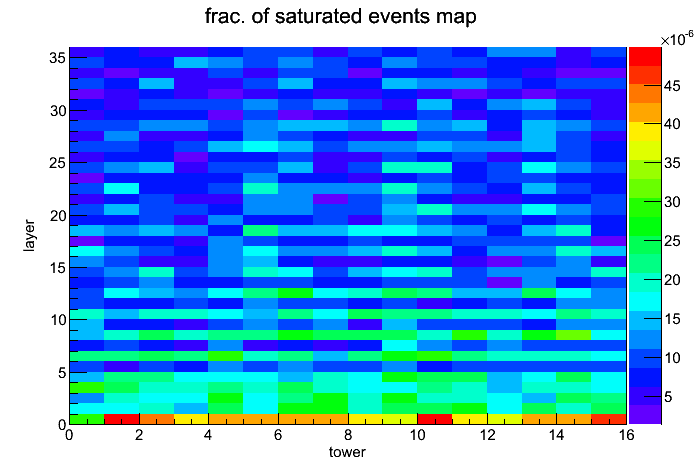

Fraction of Saturated Events
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.5% < 90.0%: Tower 0 Layer Y0
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.2: Tower 0 Layer X1 TOT peak outlier: 1.9: Tower 1 Layer Y0 TOT peak outlier: 4.0: Tower 8 Layer X0 TOT peak outlier: 1.9: Tower 14 Layer Y0
