LAT-TKR Monitor Report

runID: 456641066
intput file: /scratch/28982/r0456641066_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2015/06/22, 04:44:29
Duration: 5696 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.6%
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.3% < 90.0%: Tower 0 Layer X1 layer efficiency, 83.3% < 90.0%: Tower 0 Layer Y4 layer efficiency, 86.0% < 90.0%: Tower 3 Layer Y17
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.2e-02 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | 28.2/5.3 | > 5.0: Tower 0 Layer Y2 layer displacement, | -26.6/4.7 | > 5.0: Tower 0 Layer X16 layer displacement, | -20.6/4.1 | > 5.0: Tower 3 Layer X13 layer displacement, | 24.3/4.7 | > 5.0: Tower 3 Layer X14 layer displacement, | -29.2/4.8 | > 5.0: Tower 4 Layer X0 layer displacement, | 23.8/4.4 | > 5.0: Tower 4 Layer X3 layer displacement, | -23.3/4.3 | > 5.0: Tower 4 Layer X10 layer displacement, | 20.6/3.9 | > 5.0: Tower 4 Layer X15 layer displacement, | -29.8/3.3 | > 5.0: Tower 12 Layer Y2 layer displacement, | -22.6/4.5 | > 5.0: Tower 12 Layer X16
Layer averaged Strip Occupancy	trig-mask required: strip [369]: Tower 3 Layer Y17

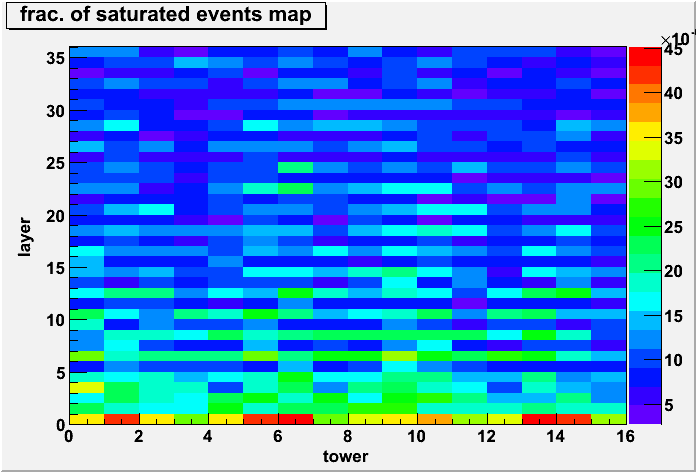

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.3): Tower 0 Layer Y3
