LAT-TKR Monitor Report

runID: 413202527
intput file: /scratch/14412/r0413202527_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2014/02/04, 10:28:50
Duration: 4574 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 81.5% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%

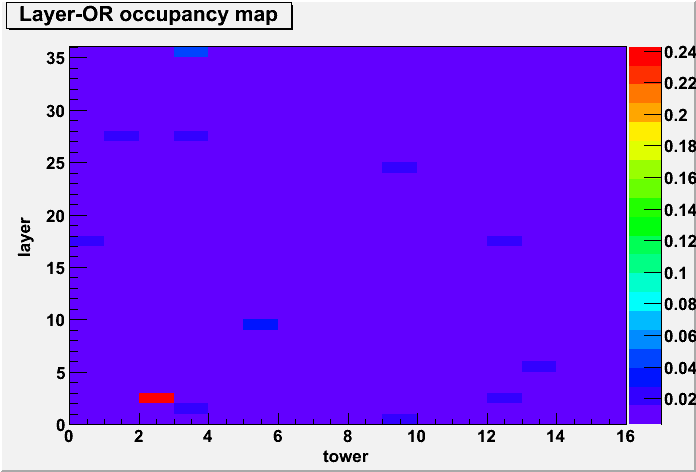

Layer-OR occupancy	ERR layer Occucpancy, 2.4e-01 > 8.0e-02: Tower 2 Layer X1
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | -25.2/4.5 | > 5.0: Tower 0 Layer Y1 layer displacement, | 25.9/4.7 | > 5.0: Tower 3 Layer X14 layer displacement, | -26.8/4.6 | > 5.0: Tower 11 Layer X11
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1]: Tower 2 Layer X1 data-mask required: strip [1]: Tower 2 Layer X1

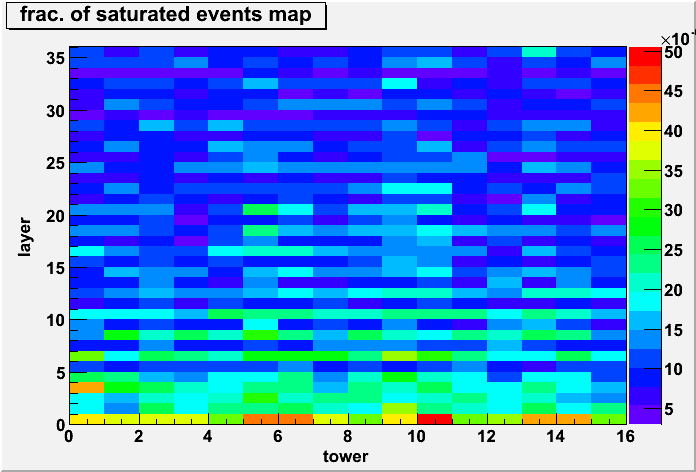

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
