LAT-TKR Monitor Report

runID: 408633355
intput file: /scratch/23437/r0408633355_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2013/12/13, 13:15:58
Duration: 4724 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 84.3% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy
Layer averaged TOT peak distribution	WARN TOT peak outlier: 5.3: Tower 6 Layer Y15
Layer displacement from reference [micron]	NOTE layer displacement, | -21.3/4.0 | > 5.0: Tower 0 Layer Y1 layer displacement, | 33.0/5.7 | > 5.0: Tower 0 Layer Y2 layer displacement, | -23.9/4.5 | > 5.0: Tower 0 Layer X16 layer displacement, | 19.3/3.7 | > 5.0: Tower 3 Layer X0 layer displacement, | -28.5/4.9 | > 5.0: Tower 4 Layer X0 layer displacement, | 22.2/4.0 | > 5.0: Tower 4 Layer X3 layer displacement, | -25.4/4.2 | > 5.0: Tower 7 Layer X11 layer displacement, | -18.5/3.5 | > 5.0: Tower 11 Layer Y2
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1395]: Tower 14 Layer X13 data-mask required: strip [1395]: Tower 14 Layer X13

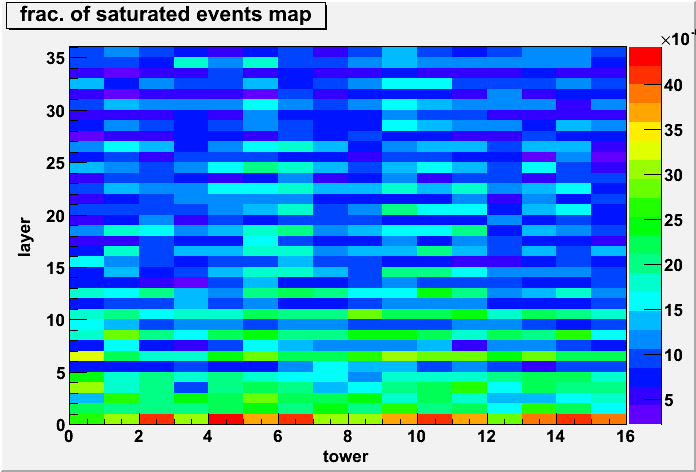

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3
