LAT-TKR Monitor Report

runID: 408553700
intput file: /scratch/22510/r0408553700_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2013/12/12, 15:08:23
Duration: 4437 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 100.0%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Layer averaged hit inefficinecy	NOTE layer efficiency, 80.3% < 90.0%: Tower 0 Layer Y4 layer efficiency, 89.3% < 90.0%: Tower 0 Layer X7
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | 32.3/5.8 | > 5.0: Tower 0 Layer Y2 layer displacement, | -29.1/5.1 | > 5.0: Tower 0 Layer X16 layer displacement, | -23.9/3.9 | > 5.0: Tower 12 Layer Y2 layer displacement, | -25.4/4.9 | > 5.0: Tower 12 Layer Y16
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1395]: Tower 14 Layer X13 data-mask required: strip [1395]: Tower 14 Layer X13

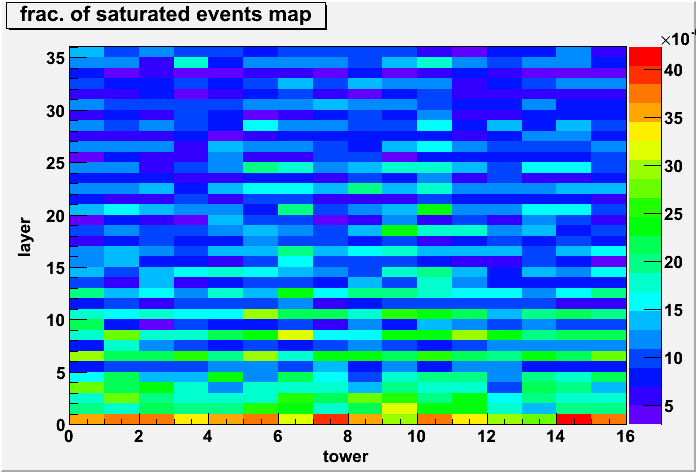

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
