LAT-TKR Monitor Report

runID: 400587996
intput file: /scratch/24312/r0400587996_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2013/09/11, 10:26:39
Duration: 5706 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 85.4% < 90.0%: Tower 0 Layer Y4 layer efficiency, 84.1% < 90.0%: Tower 3 Layer Y17
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.4: Tower 0 Layer X7
Layer displacement from reference [micron]	NOTE layer displacement, | -22.0/4.2 | > 5.0: Tower 0 Layer Y13 layer displacement, | -19.7/3.9 | > 5.0: Tower 1 Layer Y15 layer displacement, | 34.1/5.1 | > 5.0: Tower 2 Layer Y16 layer displacement, | -21.7/4.3 | > 5.0: Tower 3 Layer Y13 layer displacement, | 21.4/4.2 | > 5.0: Tower 3 Layer Y16
Layer averaged Strip Occupancy	WARN trig-mask required: strip [18]: Tower 3 Layer Y17 data-mask required: strip [18]: Tower 3 Layer Y17

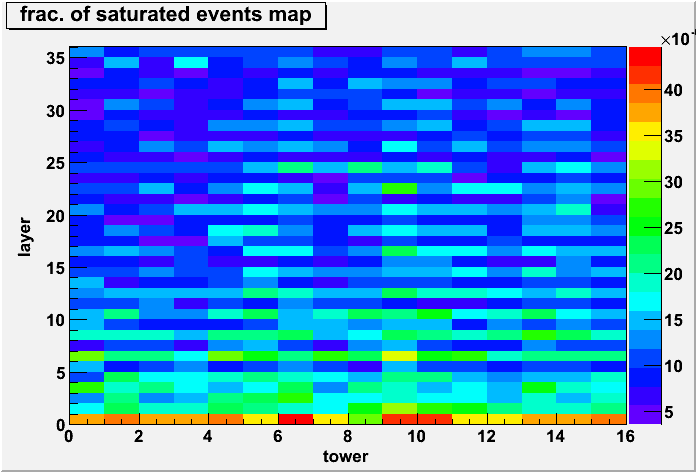

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1
