LAT-TKR Monitor Report

runID: 373354277
intput file: /scratch/15580/r0373354277_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2012/10/31, 05:31:20
Duration: 5709 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.6%
Layer averaged hit inefficinecy	NOTE layer efficiency, 76.4% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 2.0e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution

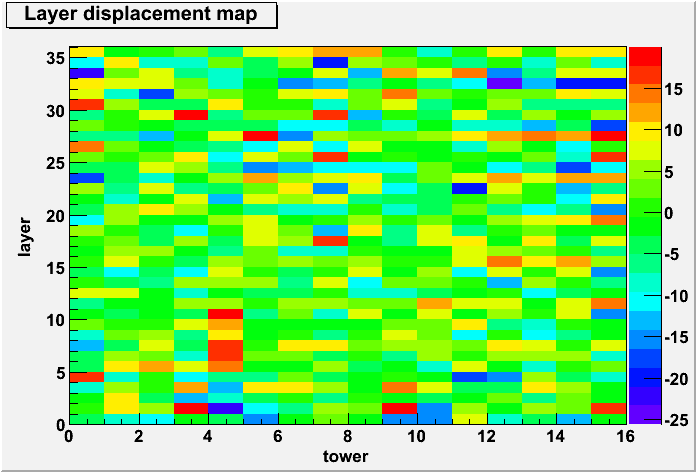

Layer displacement from reference [micron]	NOTE layer displacement, | -23.0/4.5 | > 5.0: Tower 4 Layer X0 layer displacement, | -18.7/3.5 | > 5.0: Tower 11 Layer Y2 layer displacement, | -16.3/3.1 | > 5.0: Tower 12 Layer Y2 layer displacement, | -25.6/4.8 | > 5.0: Tower 12 Layer Y16
Layer averaged Strip Occupancy	WARN trig-mask required: strip [235, 268, 267, 231, 330]: Tower 3 Layer Y17 data-mask required: strip [235, 268]: Tower 3 Layer Y17

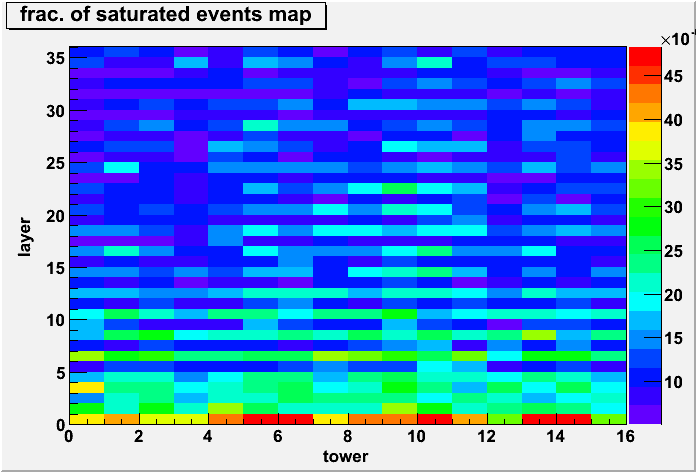

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3
