LAT-TKR Monitor Report

runID: 370165612
intput file: /scratch/19564/r0370165612_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2012/09/24, 07:46:55
Duration: 4112 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.6% < 90.0%: Tower 0 Layer X1 layer efficiency, 82.1% < 90.0%: Tower 0 Layer Y4 layer efficiency, 73.7% < 90.0%: Tower 3 Layer Y17
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 1.3e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.0: Tower 5 Layer X4 TOT peak outlier: 3.2: Tower 9 Layer Y12
Layer displacement from reference [micron]	NOTE layer displacement, | 30.9/5.8 | > 5.0: Tower 4 Layer X15 layer displacement, | 42.3/7.1 | > 5.0: Tower 7 Layer X16
Layer averaged Strip Occupancy	WARN trig-mask required: strip [235, 377, 26, 330]: Tower 3 Layer Y17 data-mask required: strip [235]: Tower 3 Layer Y17

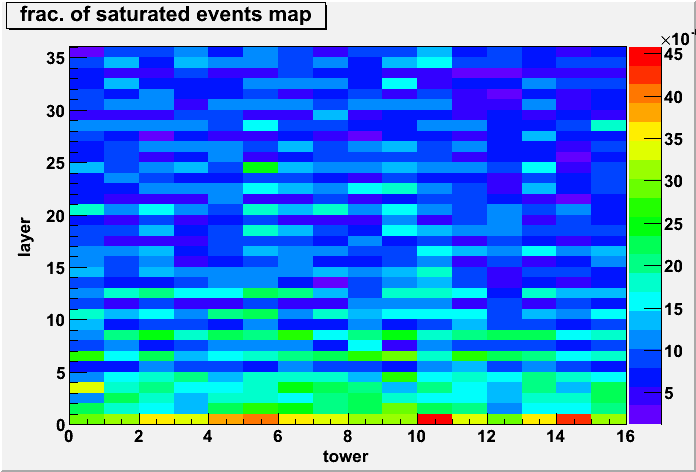

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
