LAT-TKR Monitor Report

runID: 364443231
intput file: /scratch/16089/r0364443231_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2012/07/20, 02:13:54
Duration: 4882 seconds
Script version: 1.19.80.2
Script tag: calibTkrUtil-02-09-06-gr02

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 86.3% < 90.0%: Tower 0 Layer Y3 layer efficiency, 81.0% < 90.0%: Tower 0 Layer Y4 layer efficiency, 87.5% < 90.0%: Tower 9 Layer Y0
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 1.7e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | 33.0/5.9 | > 5.0: Tower 2 Layer Y16 layer displacement, | -28.9/5.4 | > 5.0: Tower 7 Layer X15
Layer averaged Strip Occupancy	WARN trig-mask required: strip [271, 272]: Tower 3 Layer Y17 data-mask required: strip [271]: Tower 3 Layer Y17

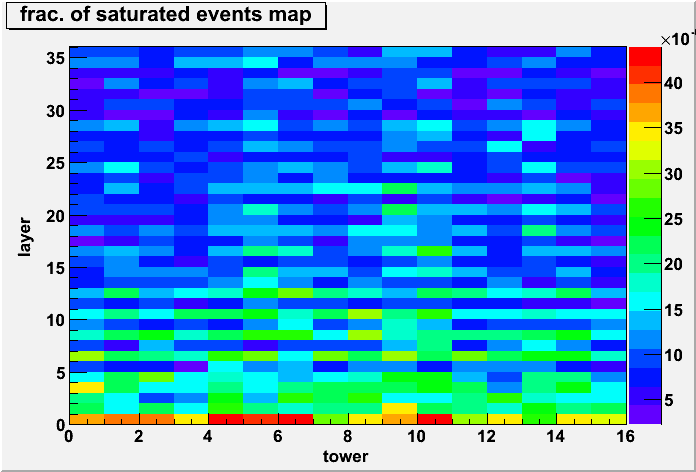

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
