LAT-TKR Monitor Report

runID: 346214272
intput file: /scratch/28211/r0346214272_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/12/22, 02:37:55
Duration: 4649 seconds
Script version: 1.19.80.1
Script tag: calibTkrUtil-02-09-06-gr01

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.6%
Layer averaged hit inefficinecy	NOTE layer efficiency, 75.0% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 3.1e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution

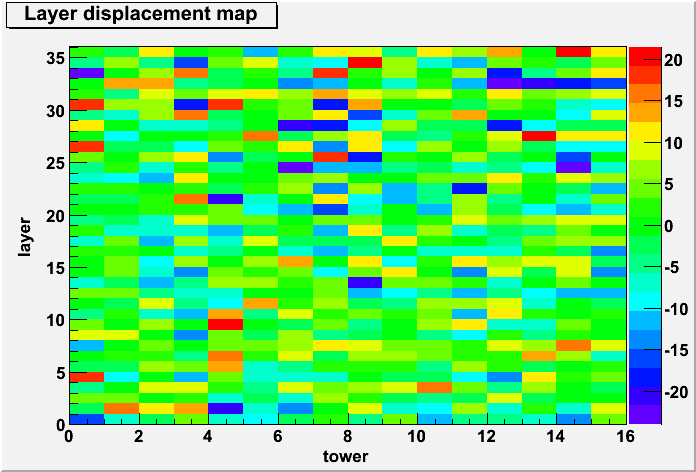

Layer displacement from reference [micron]	NOTE layer displacement, | -22.9/4.2 | > 5.0: Tower 6 Layer Y12 layer displacement, | -22.7/4.5 | > 5.0: Tower 14 Layer Y12

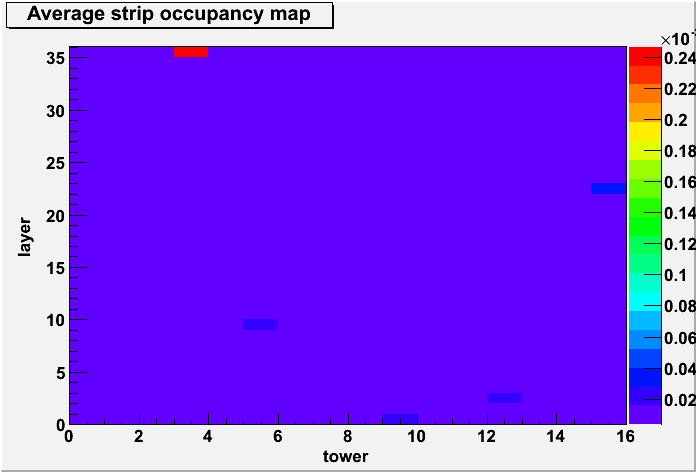

Layer averaged Strip Occupancy	WARN trig-mask required: strip [35, 71, 274, 362, 378, 326, 328, 32, 291, 285, 68, 284, 34, 289]: Tower 3 Layer Y17 trig-mask required: strip [590]: Tower 15 Layer X11 data-mask required: strip [35, 71, 274]: Tower 3 Layer Y17 data-mask required: strip [590]: Tower 15 Layer X11

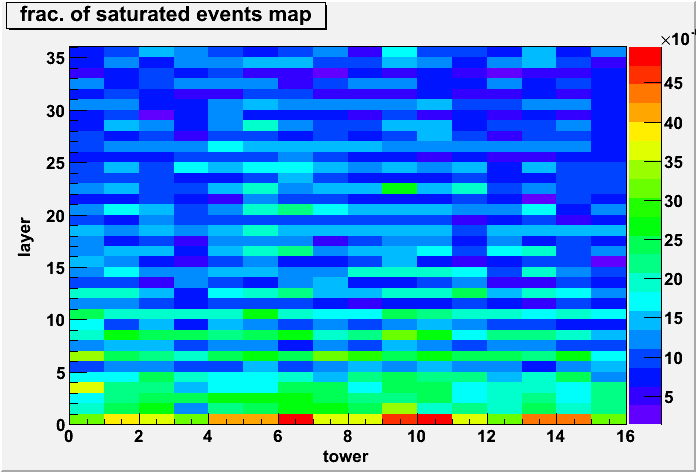

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
