LAT-TKR Monitor Report

runID: 345734842
intput file: /scratch/15559/r0345734842_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/12/16, 13:27:25
Duration: 4536 seconds
Script version: 1.19.80.1
Script tag: calibTkrUtil-02-09-06-gr01

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	WARN tower efficiency, 97.8% < 98.0%: Tower 5 Lat averaged hit efficiency: 99.5%
Layer averaged hit inefficinecy	NOTE layer efficiency, 87.0% < 90.0%: Tower 0 Layer Y4 layer efficiency, 86.4% < 90.0%: Tower 0 Layer X7
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 2.9e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]

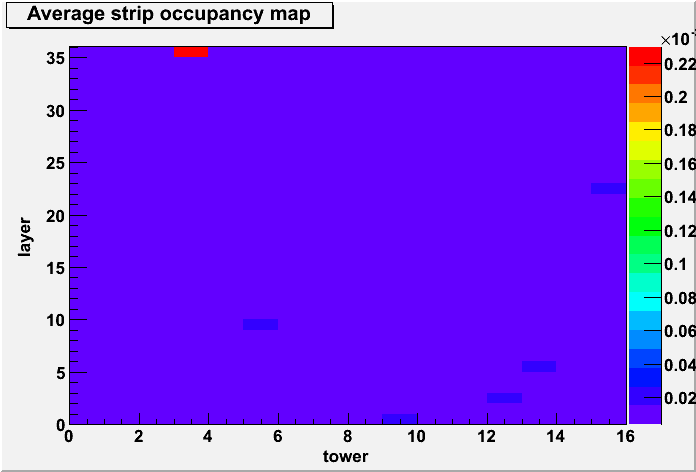

Layer averaged Strip Occupancy	WARN trig-mask required: strip [35, 71, 274, 378, 24, 326, 362, 285, 328, 68, 291, 32, 289, 290]: Tower 3 Layer Y17 trig-mask required: strip [590]: Tower 15 Layer X11 data-mask required: strip [35, 71, 274]: Tower 3 Layer Y17 data-mask required: strip [590]: Tower 15 Layer X11

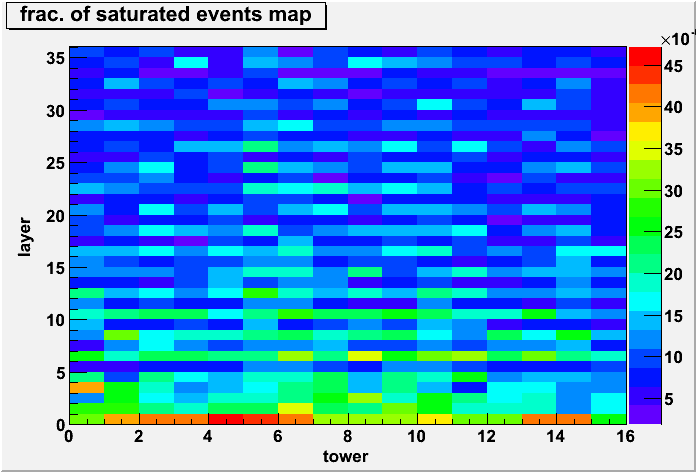

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
