LAT-TKR Monitor Report

runID: 345624765
intput file: /scratch/26604/r0345624765_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/12/15, 06:52:48
Duration: 4503 seconds
Script version: 1.19.80.1
Script tag: calibTkrUtil-02-09-06-gr01

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.6% < 90.0%: Tower 0 Layer X1 layer efficiency, 82.3% < 90.0%: Tower 0 Layer Y3 layer efficiency, 86.5% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 3.3e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]
Layer averaged Strip Occupancy	WARN trig-mask required: strip [24, 35, 71, 274, 362, 378, 285, 326, 68, 34, 328, 32, 361]: Tower 3 Layer Y17 data-mask required: strip [24, 35, 71, 274, 362]: Tower 3 Layer Y17

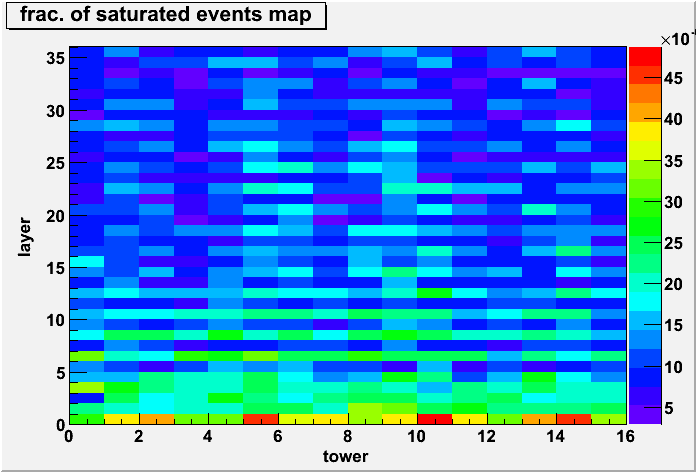

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
