LAT-TKR Monitor Report

runID: 345277179
intput file: /scratch/14226/r0345277179_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/12/11, 06:19:42
Duration: 2623 seconds
Script version: 1.19.80.1
Script tag: calibTkrUtil-02-09-06-gr01

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 78.0% < 90.0%: Tower 0 Layer Y3 layer efficiency, 81.6% < 90.0%: Tower 0 Layer Y4 layer efficiency, 87.9% < 90.0%: Tower 3 Layer Y17
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 3.0e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.2: Tower 0 Layer X7
Layer displacement from reference [micron]	NOTE layer displacement, | -37.0/6.8 | > 5.0: Tower 12 Layer X16

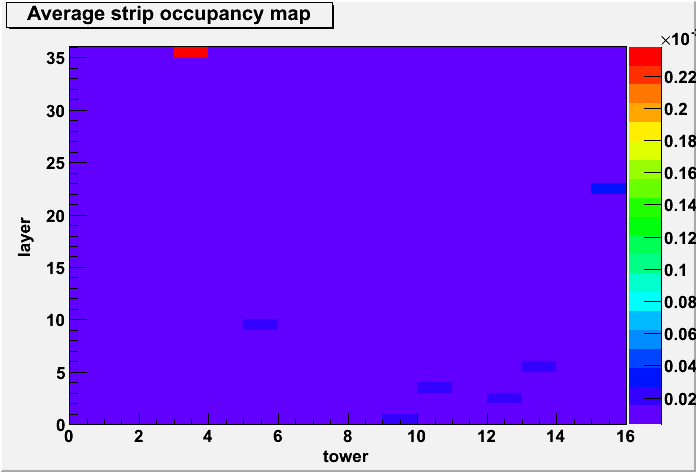

Layer averaged Strip Occupancy	WARN trig-mask required: strip [35, 71, 274, 378, 326, 34, 362, 285, 68, 328, 291, 24]: Tower 3 Layer Y17 trig-mask required: strip [590]: Tower 15 Layer X11 data-mask required: strip [35, 71, 274]: Tower 3 Layer Y17 data-mask required: strip [590]: Tower 15 Layer X11

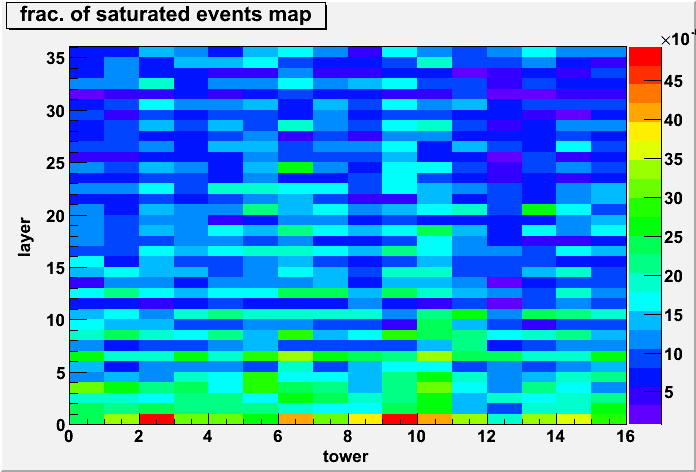

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.2): Tower 0 Layer Y3 Dead GTFE(No.3): Tower 0 Layer Y3
