LAT-TKR Monitor Report

runID: 342631876
intput file: /scratch/15254/r0342631876_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/11/10, 15:31:19
Duration: 5712 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Layer averaged hit inefficinecy	NOTE layer efficiency, 84.5% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%

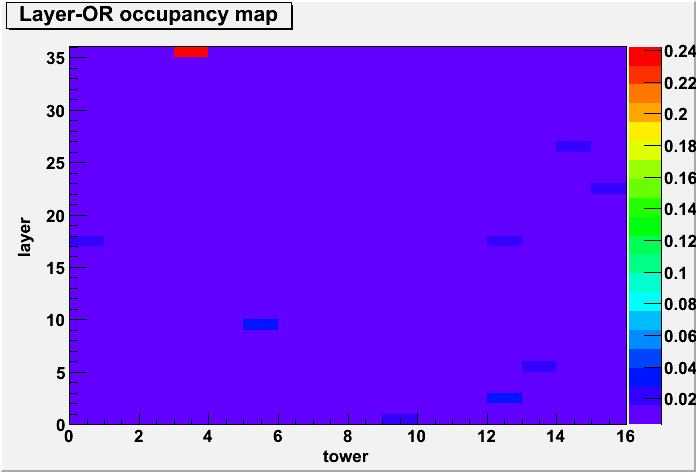

Layer-OR occupancy	ERR layer Occucpancy, 2.4e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 5.3: Tower 6 Layer Y15
Layer displacement from reference [micron]	NOTE layer displacement, | 26.6/5.3 | > 5.0: Tower 0 Layer X13 layer displacement, | 20.6/3.9 | > 5.0: Tower 12 Layer X5 layer displacement, | -22.3/4.4 | > 5.0: Tower 13 Layer Y10 layer displacement, | 24.3/4.7 | > 5.0: Tower 13 Layer Y13
Layer averaged Strip Occupancy	WARN trig-mask required: strip [35, 71, 274, 287, 378, 326, 362, 68]: Tower 3 Layer Y17 trig-mask required: strip [590]: Tower 15 Layer X11 data-mask required: strip [35, 71, 274, 287]: Tower 3 Layer Y17 data-mask required: strip [590]: Tower 15 Layer X11

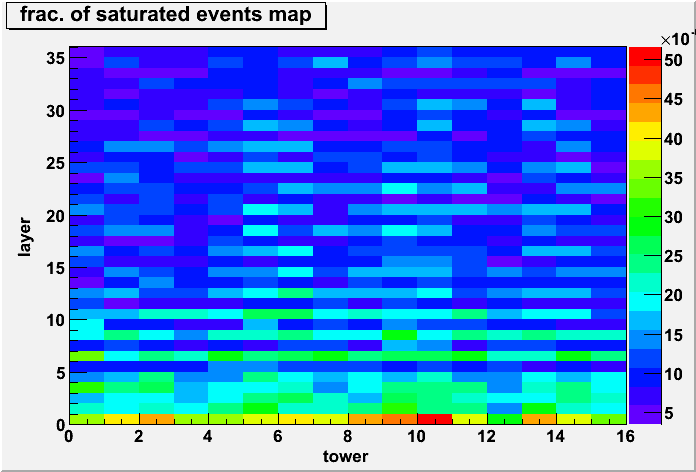

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1
