LAT-TKR Monitor Report

runID: 323016776
intput file: /scratch/26430/r0323016776_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/03/28, 14:52:59
Duration: 5713 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.4% < 90.0%: Tower 0 Layer X1 layer efficiency, 89.5% < 90.0%: Tower 0 Layer X7
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 1.7e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.3: Tower 0 Layer X7

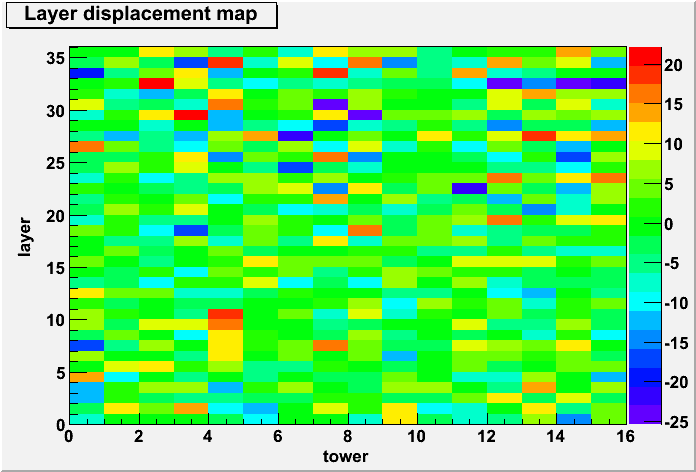

Layer displacement from reference [micron]	NOTE layer displacement, | -24.7/4.3 | > 5.0: Tower 7 Layer X15 layer displacement, | -25.4/4.6 | > 5.0: Tower 8 Layer X14 layer displacement, | -21.9/4.1 | > 5.0: Tower 11 Layer X11 layer displacement, | -25.3/4.9 | > 5.0: Tower 12 Layer Y16 layer displacement, | -23.6/4.7 | > 5.0: Tower 14 Layer Y16
Layer averaged Strip Occupancy	WARN trig-mask required: strip [54, 321, 358, 30, 308]: Tower 3 Layer Y17 data-mask required: strip [54, 321]: Tower 3 Layer Y17

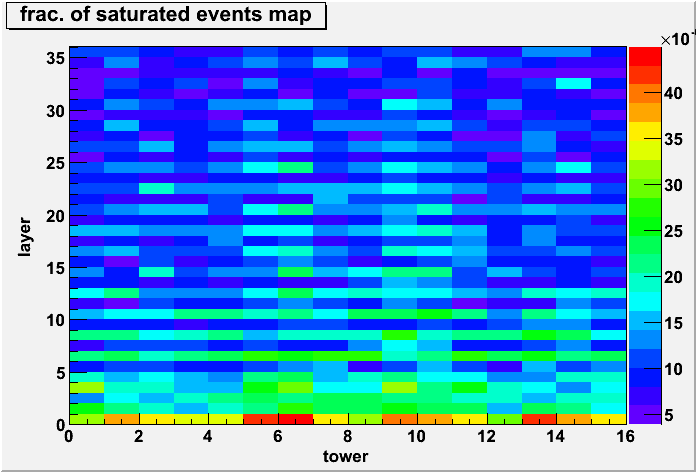

Fraction of Saturated Events
Number of Dead GTFE
