LAT-TKR Monitor Report

runID: 315547616
intput file: /scratch/11426/r0315547616_v001_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2011/01/01, 04:06:59
Duration: 4701 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.4% < 90.0%: Tower 0 Layer Y3 layer efficiency, 87.2% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 3.1e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 4.0: Tower 4 Layer X14 TOT peak outlier: 4.3: Tower 9 Layer Y2
Layer displacement from reference [micron]

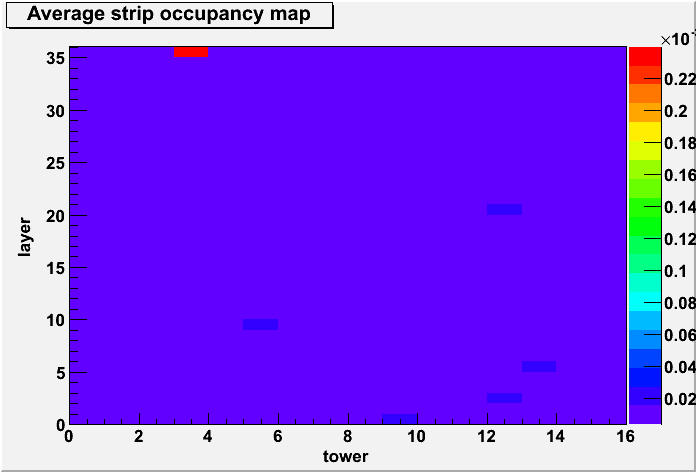

Layer averaged Strip Occupancy	WARN trig-mask required: strip [303, 305, 309, 355, 319, 348]: Tower 3 Layer Y17 data-mask required: strip [303, 305, 309, 355]: Tower 3 Layer Y17

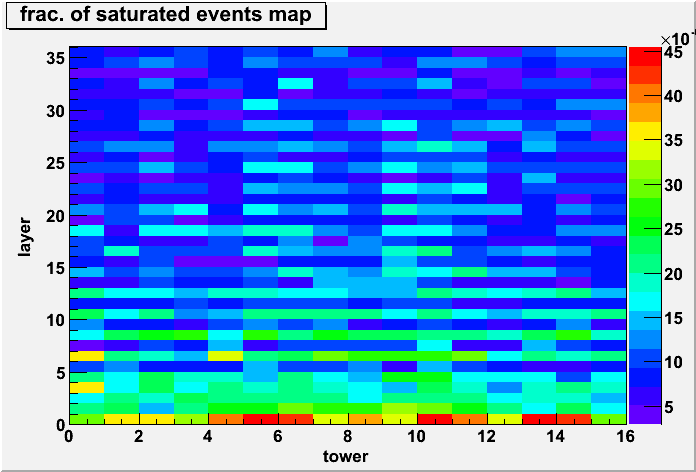

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
