LAT-TKR Monitor Report

runID: 315140923
intput file: /scratch/6020/r0315140923_v001_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2010/12/27, 11:08:46
Duration: 5714 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.6% < 90.0%: Tower 0 Layer X1 layer efficiency, 84.7% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%

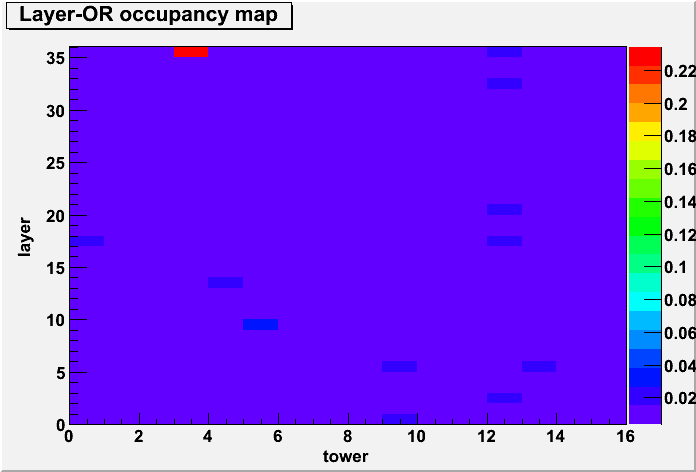

Layer-OR occupancy	ERR layer Occucpancy, 2.3e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | -25.3/4.9 | > 5.0: Tower 0 Layer Y11 layer displacement, | 36.6/6.5 | > 5.0: Tower 2 Layer Y16 layer displacement, | -30.3/6.0 | > 5.0: Tower 6 Layer Y14 layer displacement, | -20.6/3.6 | > 5.0: Tower 12 Layer Y2
Layer averaged Strip Occupancy	WARN trig-mask required: strip [303, 309, 355, 305, 319, 348, 318, 380]: Tower 3 Layer Y17 data-mask required: strip [303, 309, 355]: Tower 3 Layer Y17

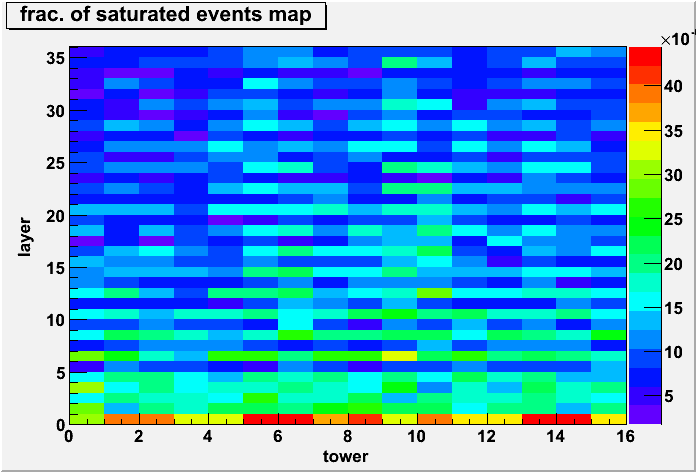

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
