LAT-TKR Monitor Report

runID: 314052596
intput file: /scratch/20815/r0314052596_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2010/12/14, 20:49:59
Duration: 5714 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 84.5% < 90.0%: Tower 0 Layer Y3 layer efficiency, 85.7% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 1.2e-01 > 8.0e-02: Tower 3 Layer Y17
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | 25.7/4.5 | > 5.0: Tower 0 Layer X15 layer displacement, | -29.4/5.2 | > 5.0: Tower 0 Layer X16 layer displacement, | 26.2/4.9 | > 5.0: Tower 7 Layer X12 layer displacement, | -18.5/3.3 | > 5.0: Tower 11 Layer Y2 layer displacement, | -17.3/3.4 | > 5.0: Tower 12 Layer Y2 layer displacement, | -18.1/3.6 | > 5.0: Tower 12 Layer Y14 layer displacement, | -25.3/4.3 | > 5.0: Tower 12 Layer Y16 layer displacement, | 24.3/4.2 | > 5.0: Tower 13 Layer Y13 layer displacement, | -28.9/5.4 | > 5.0: Tower 13 Layer Y16 layer displacement, | -26.3/4.3 | > 5.0: Tower 14 Layer Y16

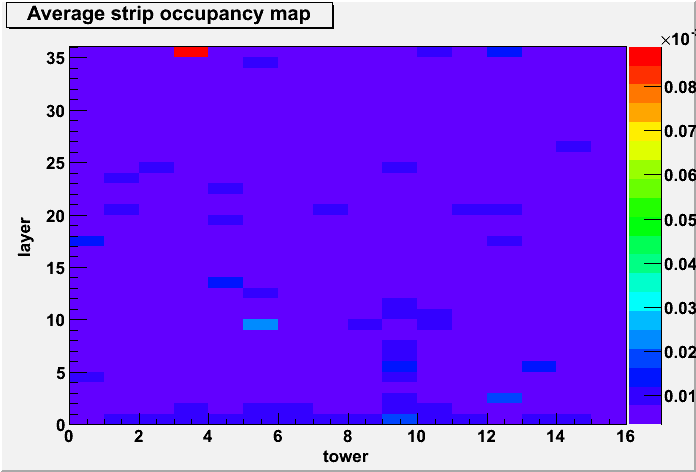

Layer averaged Strip Occupancy	trig-mask required: strip [355, 303, 305]: Tower 3 Layer Y17

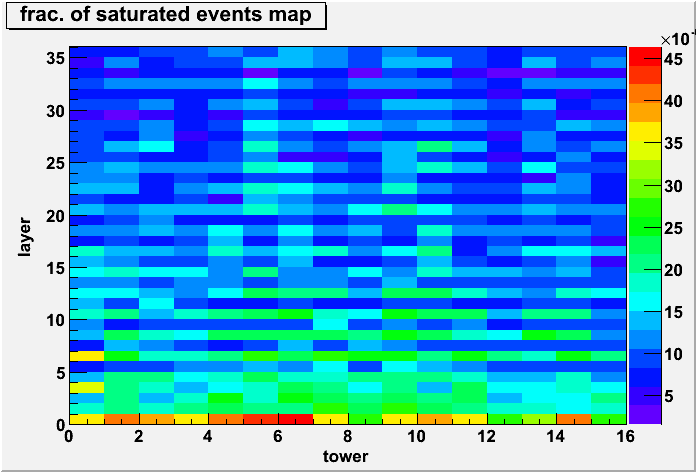

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
