LAT-TKR Monitor Report

runID: 306445603
intput file: /scratch/10462/r0306445603_v001_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2010/09/17, 19:46:46
Duration: 5714 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.0% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | -28.1/4.9 | > 5.0: Tower 0 Layer X16 layer displacement, | 23.9/4.6 | > 5.0: Tower 5 Layer Y13 layer displacement, | -21.1/4.2 | > 5.0: Tower 7 Layer X15 layer displacement, | 29.0/5.1 | > 5.0: Tower 7 Layer X16 layer displacement, | -18.0/3.1 | > 5.0: Tower 12 Layer Y2 layer displacement, | -31.2/5.0 | > 5.0: Tower 12 Layer Y16 layer displacement, | 23.2/4.1 | > 5.0: Tower 13 Layer Y13
Layer averaged Strip Occupancy

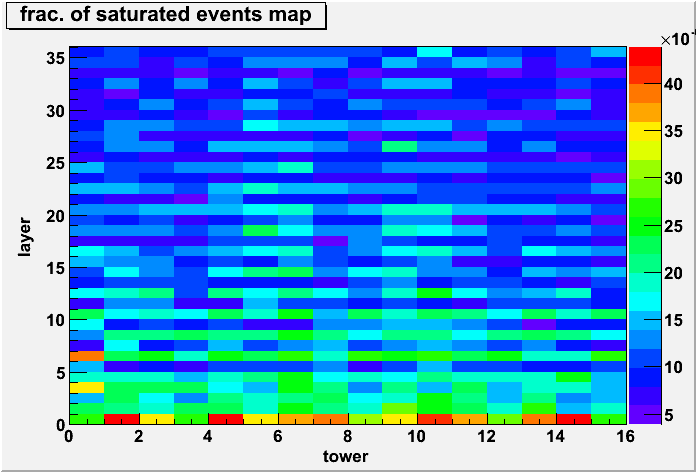

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
