LAT-TKR Monitor Report

runID: 300113503
intput file: /scratch/31977/r0300113503_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2010/07/06, 12:51:46
Duration: 4988 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.7%
Tower averaged hit efficiency	WARN tower efficiency, 97.9% < 98.0%: Tower 0 Lat averaged hit efficiency: 99.6%
Layer averaged hit inefficinecy	NOTE layer efficiency, 89.1% < 90.0%: Tower 0 Layer Y3 layer efficiency, 81.5% < 90.0%: Tower 0 Layer Y4 layer efficiency, 89.2% < 90.0%: Tower 9 Layer Y0
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy
Layer averaged TOT peak distribution

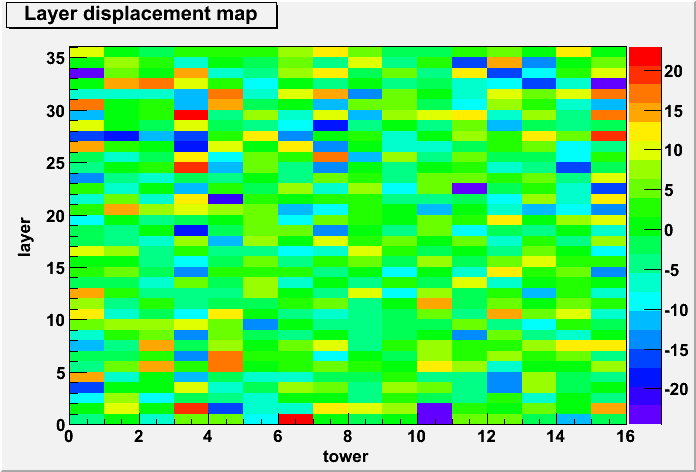

Layer displacement from reference [micron]	NOTE layer displacement, | 16.6/3.2 | > 5.0: Tower 4 Layer X2 layer displacement, | -21.8/4.2 | > 5.0: Tower 4 Layer X10
Layer averaged Strip Occupancy	WARN trig-mask required: strip [1153]: Tower 10 Layer Y1 data-mask required: strip [1153]: Tower 10 Layer Y1

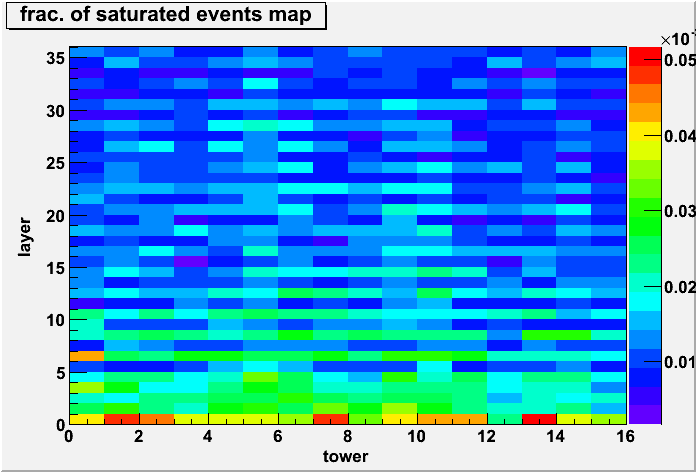

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
