LAT-TKR Monitor Report

runID: 287111272
intput file: /scratch/5964/r0287111272_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2010/02/06, 01:07:54
Duration: 4318 seconds
Script version: 1.19
Script tag: v2r9p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.6% < 90.0%: Tower 0 Layer Y3 layer efficiency, 82.2% < 90.0%: Tower 0 Layer Y4 layer efficiency, 85.0% < 90.0%: Tower 9 Layer Y0
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 1.1e-01 > 8.0e-02: Tower 5 Layer X15
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | -36.2/6.4 | > 5.0: Tower 0 Layer X16 layer displacement, | -33.2/6.4 | > 5.0: Tower 15 Layer Y16
Layer averaged Strip Occupancy	WARN trig-mask required: strip [285, 287]: Tower 5 Layer X15 data-mask required: strip [285, 287]: Tower 5 Layer X15

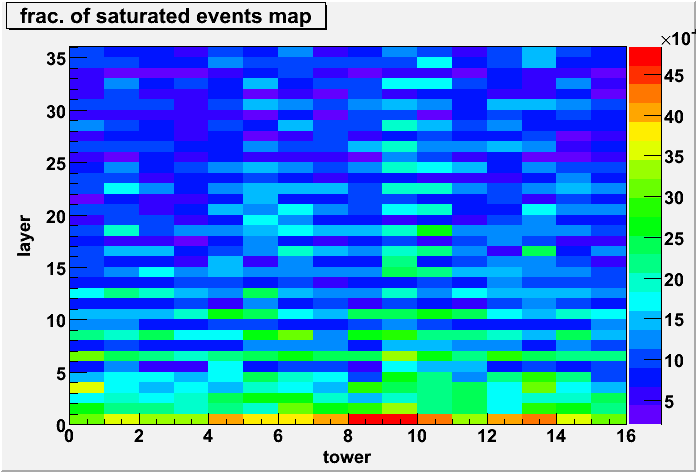

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
