LAT-TKR Monitor Report

runID: 272541569
intput file: /scratch/31441/r0272541569_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2009/08/21, 09:59:31
Duration: 4691 seconds
Script version: 1.17
Script tag: v2r7p3

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.8%
Tower averaged hit efficiency	WARN tower efficiency, 97.8% < 98.0%: Tower 0 Lat averaged hit efficiency: 99.7%
Layer averaged hit inefficinecy	NOTE layer efficiency, 87.9% < 90.0%: Tower 0 Layer X1 layer efficiency, 79.2% < 90.0%: Tower 0 Layer Y4 layer efficiency, 88.9% < 90.0%: Tower 9 Layer Y0
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy	ERR layer Occucpancy, 9.1e-02 > 8.0e-02: Tower 4 Layer X6
Layer averaged TOT peak distribution

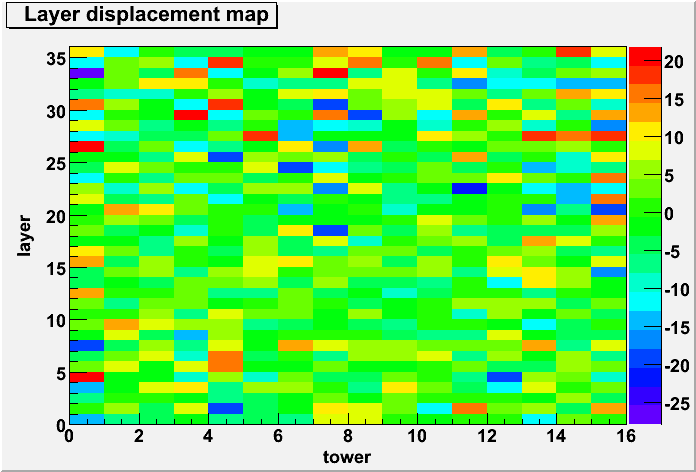

Layer displacement from reference [micron]	NOTE layer displacement, | -28.0/5.5 | > 5.0: Tower 0 Layer X16 layer displacement, | -20.3/3.4 | > 5.0: Tower 12 Layer Y2
Layer averaged Strip Occupancy	WARN strip:96 occupancy, 5.1e-02 > 2.0e-02: Tower 3 Layer Y17 strip:1214 occupancy, 2.1e-02 > 2.0e-02: Tower 3 Layer Y17 strip:36 occupancy, 8.6e-02 > 2.0e-02: Tower 4 Layer X6 strip:951 occupancy, 4.8e-02 > 2.0e-02: Tower 6 Layer Y2

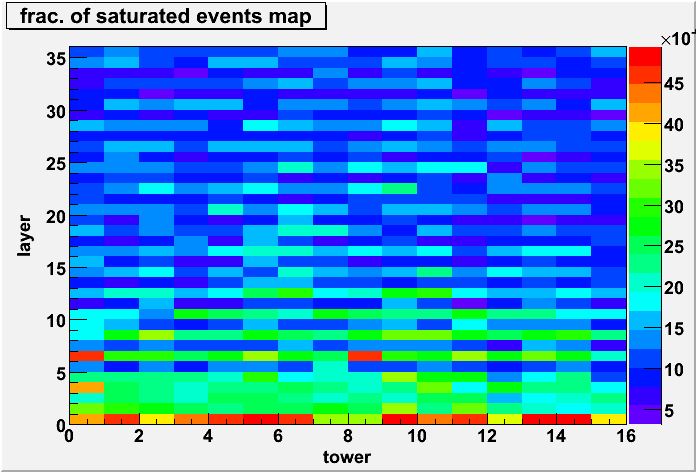

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
