LAT-TKR Monitor Report

runID: 262985839
intput file: /scratch/19232/r0262985839_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2009/05/02, 19:37:21
Duration: 4541 seconds
Script version: 1.17
Script tag: v2r7p3

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.9%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.6%
Layer averaged hit inefficinecy	NOTE layer efficiency, 88.0% < 90.0%: Tower 0 Layer Y3 layer efficiency, 80.8% < 90.0%: Tower 0 Layer Y4
Fraction of no-hit strips	Lat averaged fraction of no-hit strips: 0.0%
Layer-OR occupancy
Layer averaged TOT peak distribution
Layer displacement from reference [micron]	NOTE layer displacement, | -26.2/4.4 | > 5.0: Tower 0 Layer Y1 layer displacement, | 31.9/6.2 | > 5.0: Tower 0 Layer Y2 layer displacement, | 35.5/5.5 | > 5.0: Tower 0 Layer X13 layer displacement, | -38.4/6.2 | > 5.0: Tower 0 Layer X16 layer displacement, | 24.2/4.5 | > 5.0: Tower 4 Layer X3 layer displacement, | -23.3/4.5 | > 5.0: Tower 4 Layer X12 layer displacement, | 26.5/5.0 | > 5.0: Tower 4 Layer X15 layer displacement, | 23.4/4.5 | > 5.0: Tower 8 Layer X11 layer displacement, | -19.2/3.6 | > 5.0: Tower 12 Layer Y2
Layer averaged Strip Occupancy	WARN strip:1214 occupancy, 2.1e-02 > 2.0e-02: Tower 3 Layer Y17

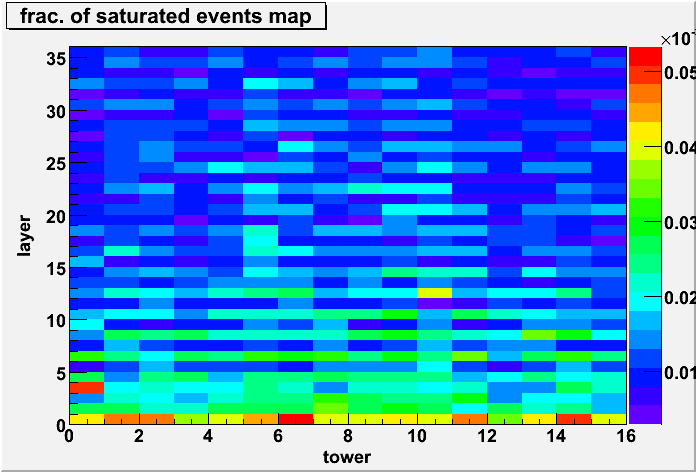

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
