LAT-TKR Monitor Report

runID: 240431664
intput file: /scratch/18420/r0240431664_v001_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2008/08/14, 18:34:26
Duration: 4617 seconds
Script version: 1.12
Script tag: v2r4p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 99.0%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.9%
Layer averaged hit inefficinecy
Fraction of no-hit strips	WARN Poor statistics, No displayed Lat averaged fraction of no-hit strips: 97.4%
Layer-OR occupancy	ERR layer Occucpancy, 2.9e-01 > 8.0e-02: Tower 0 Layer X7 layer Occucpancy, 1.2e-01 > 8.0e-02: Tower 2 Layer Y15 layer Occucpancy, 1.8e-01 > 8.0e-02: Tower 8 Layer X17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.6: Tower 3 Layer Y12

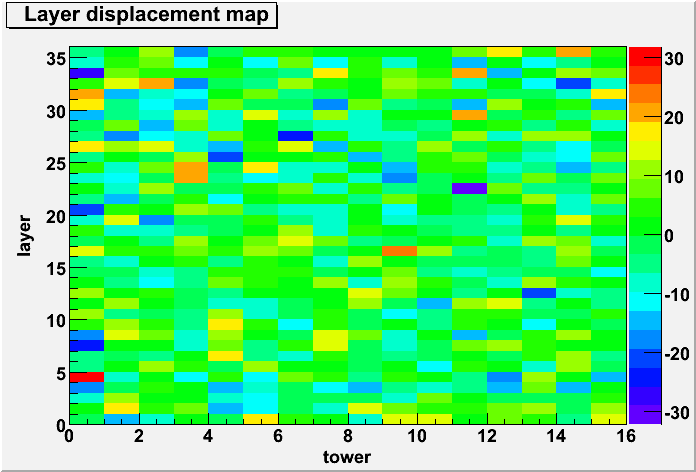

Layer displacement from reference [micron]	NOTE layer displacement, | -32.2/6.2 | > 5.0: Tower 11 Layer X11

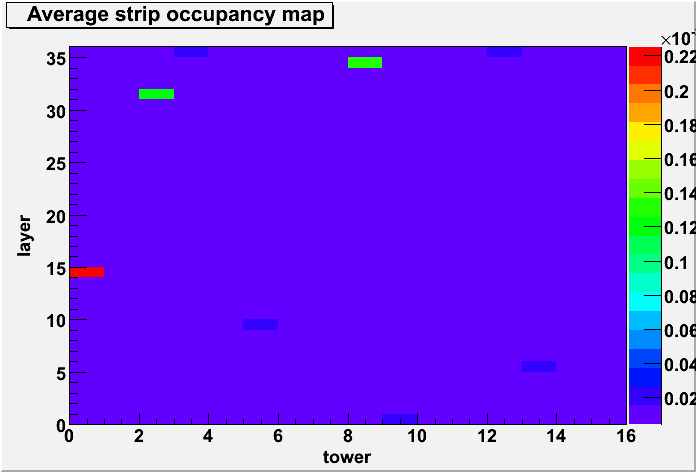

Layer averaged Strip Occupancy

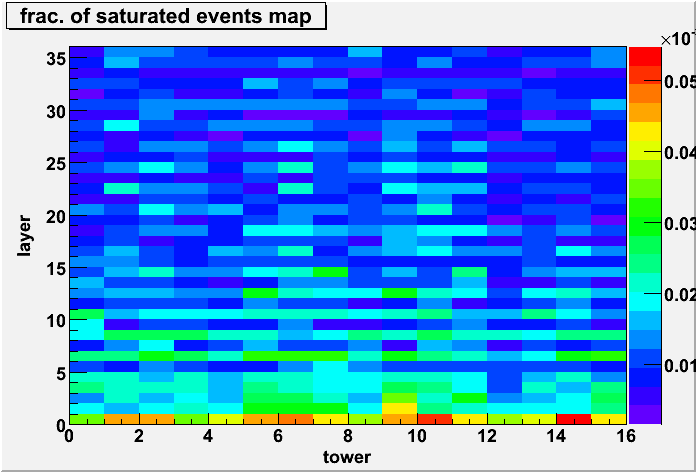

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
