LAT-TKR Monitor Report

runID: 240093651
intput file: /scratch/915/r0240093651_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2008/08/10, 20:40:53
Duration: 4176 seconds
Script version: 1.12
Script tag: v2r4p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 98.7%
Tower averaged hit efficiency	Lat averaged hit efficiency: 99.8%
Layer averaged hit inefficinecy	NOTE layer efficiency, 84.6% < 90.0%: Tower 0 Layer Y3 layer efficiency, 89.5% < 90.0%: Tower 0 Layer Y6

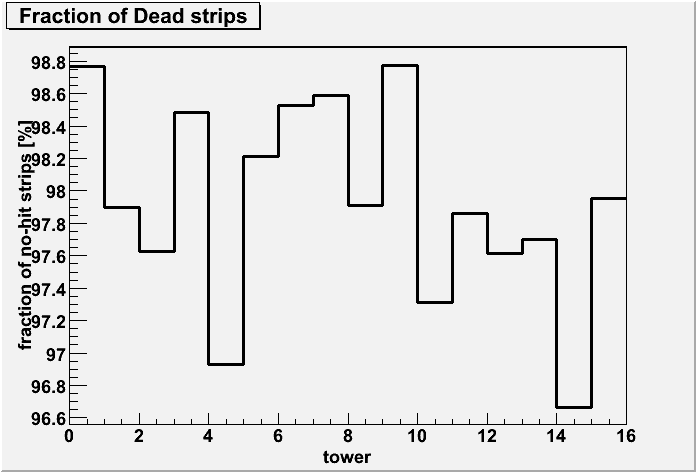

Fraction of no-hit strips	WARN Poor statistics, No displayed Lat averaged fraction of no-hit strips: 97.9%
Layer-OR occupancy	ERR layer Occucpancy, 2.4e-01 > 8.0e-02: Tower 0 Layer X7 layer Occucpancy, 1.3e-01 > 8.0e-02: Tower 8 Layer X17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 1.8: Tower 12 Layer Y12
Layer displacement from reference [micron]
Layer averaged Strip Occupancy

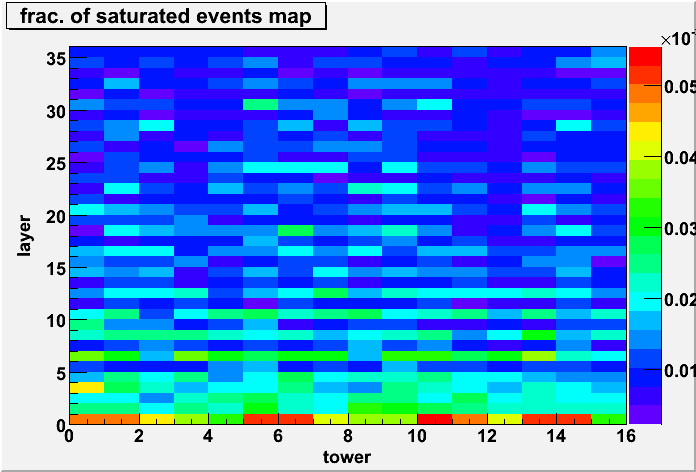

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
