LAT-TKR Monitor Report

runID: 240007654
intput file: /scratch/31929/r0240007654_v000_tkrAnalysis.root
reference files:
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/calibOps-ref.root
/afs/slac.stanford.edu/g/glast/ground/releases/monitor/TKR/TkrMonitor/refRoot/muon-vertical-ref.root
Start Time: 2008/08/09, 20:47:36
Duration: 4594 seconds
Script version: 1.12
Script tag: v2r4p1

Tower averaged trigger efficiency	Lat averaged trigger efficiency: 98.7%
Tower averaged hit efficiency	WARN tower efficiency, 97.4% < 98.0%: Tower 10 Lat averaged hit efficiency: 99.6%
Layer averaged hit inefficinecy	NOTE layer efficiency, 84.6% < 90.0%: Tower 0 Layer X1 layer efficiency, 81.8% < 90.0%: Tower 0 Layer Y4 layer efficiency, 87.5% < 90.0%: Tower 9 Layer Y0

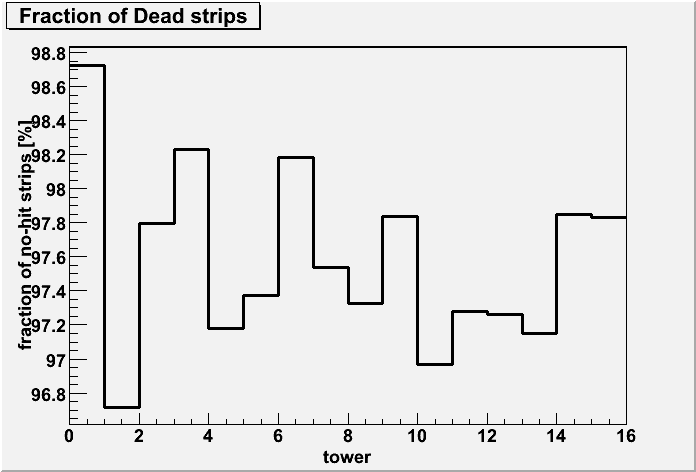

Fraction of no-hit strips	WARN Poor statistics, No displayed Lat averaged fraction of no-hit strips: 97.6%
Layer-OR occupancy	ERR layer Occucpancy, 2.3e-01 > 8.0e-02: Tower 0 Layer X7 layer Occucpancy, 1.2e-01 > 8.0e-02: Tower 8 Layer X17
Layer averaged TOT peak distribution	WARN TOT peak outlier: 3.8: Tower 9 Layer Y2 TOT peak outlier: 4.3: Tower 9 Layer Y3 TOT peak outlier: 4.3: Tower 9 Layer X7 TOT peak outlier: 4.1: Tower 11 Layer X0
Layer displacement from reference [micron]	NOTE layer displacement, | -32.3/6.1 | > 5.0: Tower 0 Layer Y3 layer displacement, | 23.9/4.5 | > 5.0: Tower 6 Layer X9 layer displacement, | -22.9/4.6 | > 5.0: Tower 12 Layer Y2
Layer averaged Strip Occupancy

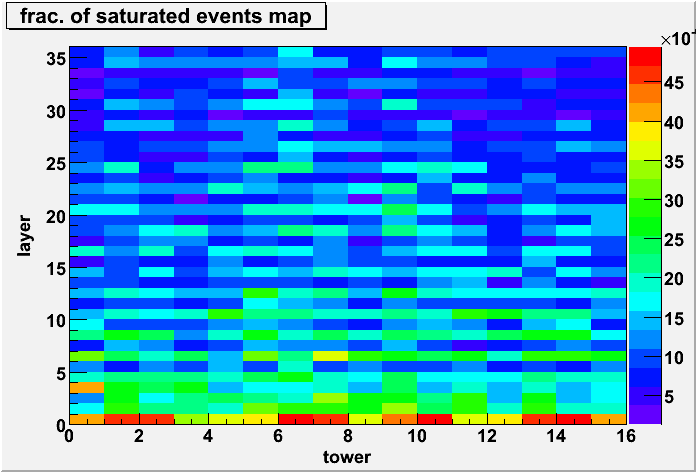

Fraction of Saturated Events
Number of Dead GTFE	ERR Dead GTFE(No.20): Tower 0 Layer X1 Dead GTFE(No.21): Tower 0 Layer X1 Dead GTFE(No.3): Tower 0 Layer Y3
