ITOS Mnemonic: LPBCRTOSEXEC
View Options: (help)
Context:
Description:
-
Start the RTOS.
Layout: (show detail; help)
| Boot RTOS (LBTRTOSEXEC) Telecommand Packet Format |
||||||||||||||||
| 0x | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 000 | Version=0 | T=1 | SH | APID=0x640:3 | ||||||||||||
| 002 | SF=3 | Sequence Count | ||||||||||||||
| 004 | Packet Length=11 | |||||||||||||||
| 006 | 0 | Function Code=3 | ||||||||||||||
| 008 | CUNITBF ident | |||||||||||||||
| 00A | CPAD16 pad | |||||||||||||||
| 00C | CFLAGS32 sbcFlags | |||||||||||||||
| 010 | Packet Checksum | |||||||||||||||

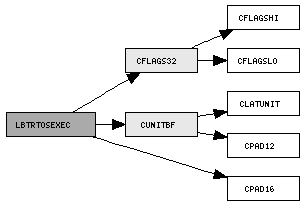

Fields:
-
Attribute(s):
-
Brief: "32-Bit Boot Flags Bitfield"
-
Instance(s): sbcFlags
Bitfield containing the full 32 bits of the boot flags parameter.
-
Attribute(s):
-
Brief: "16-bit Padding"
-
Instance(s): pad
Explicit padding of 16 bits.
-
Attribute(s):
-
Brief: "LAT Unit Bitfield"
-
Instance(s): ident
Bitfield containing target LAT unit and some padding.
