"Dump a code trace by name." (APP/LSW)

ITOS Mnemonic:  LSWDUMPTRACENAME

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Dump a code trace by name. The name 'system' is reserved for the system trace.

Layout:  (show detail; help)

Dump a code trace by name. (DumpTraceByName) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x64C:3
002	SF=3		Sequence Count
004	Packet Length=23
006	0	Function Code=3
008	NODETRANID flag
00A	DEST dest								PAD8 pad8
00C	TRACENAME name[0-15]
01C	Packet Checksum

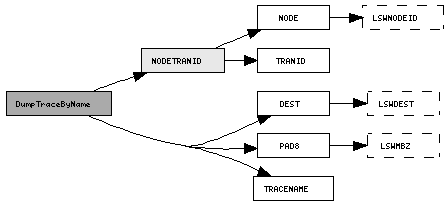

Fields:

DEST (index)

Attribute(s):  LSWDEST

Brief:  "Destination for a dump"

Instance(s):  dest

Destination for a dump

NODETRANID (index)

Attribute(s):

Brief:  "Compound of node and transaction ID"

Instance(s):  flag

Compound of node and transaction ID

PAD8 (index)

Attribute(s):  LSWMBZ

Brief:  "8 bits of padding"

Instance(s):  pad8

8 bits of padding

TRACENAME (index)

Attribute(s):

Brief:  "Trace name"

Instance(s):  name

All traces are identified by a (small) number and a (short) name, and can be dumped using either identification method. For dumps by name, this is the name.
