"Dump the start line system trace" (APP/LSW)
ITOS Mnemonic: LSWDUMPSTART
View Options: (help)
Context:
Description:
-
Dump the start line system trace
Layout: (show detail; help)

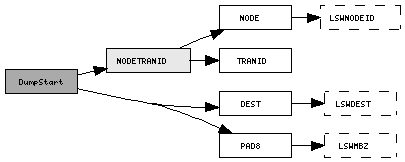

| Dump the start line system trace (DumpStart) Telecommand Packet Format |
||||||||||||||||
| 0x | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 000 | Version=0 | T=1 | SH | APID=0x64C:1 | ||||||||||||
| 002 | SF=3 | Sequence Count | ||||||||||||||
| 004 | Packet Length=7 | |||||||||||||||
| 006 | 0 | Function Code=1 | ||||||||||||||
| 008 | NODETRANID flag | |||||||||||||||
| 00A | DEST dest | PAD8 pad | ||||||||||||||
| 00C | Packet Checksum | |||||||||||||||
Fields:
-
Attribute(s): LSWDEST
-
Brief: "Destination for a dump"
-
Instance(s): dest
Destination for a dump
-
Attribute(s):
-
Brief: "Compound of node and transaction ID"
-
Instance(s): flag
Compound of node and transaction ID
-
Attribute(s): LSWMBZ
-
Brief: "8 bits of padding"
-
Instance(s): pad
8 bits of padding
