"Set actions for a limit transition on an ADC" (APP/LIH)
ITOS Mnemonic: LIHSETACTIONSADC
View Options: (help)
Context:
Description:
-
Set actions for a limit transition on an ADC. In all cases, a value of -1 results in the action being left unchanged. The alert and diagnostic flags are simple enable/disable. The value of the message flag can be used to set the severity level of the message.
Layout: (show detail; help)
| Set actions for a limit transition on an ADC (SetActionsAdc) Telecommand Packet Format |
||||||||||||||||
| 0x | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 000 | Version=0 | T=1 | SH | APID=0x654:4 | ||||||||||||
| 002 | SF=3 | Sequence Count | ||||||||||||||
| 004 | Packet Length=13 | |||||||||||||||
| 006 | 0 | Function Code=4 | ||||||||||||||
| 008 | us adx | |||||||||||||||
| 00A | uc from | uc to | ||||||||||||||
| 00C | ss alert | |||||||||||||||
| 00E | ss diag | |||||||||||||||
| 010 | ss msg | |||||||||||||||
| 012 | Packet Checksum | |||||||||||||||

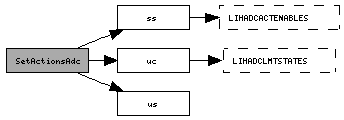

Fields:
-
Attribute(s): LIHADCACTENABLES
-
Brief: "Signed short"
-
Instance(s): alert, diag, msg
Signed short
-
Attribute(s): LIHADCLMTSTATES
-
Brief: "Unsigned char"
-
Instance(s): from, to
Unsigned char
-
Attribute(s):
-
Brief: "Unsigned short"
-
Instance(s): adx
Unsigned short
