"File Dump Data CTDB" (APP/LFS)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Contains a portion of a file data dump to the CTDB interface. The LFSFDMPOFFSET and LFSFDMPSIZE members provide the offset into the file and size of the current packet's data contents (LFSFDMPDATAxxx). The LFSFDMPDEV, LFSFDMPDIR, and LFSFDMPFILE members give the storage location of the file.

Layout:  (show detail; help)

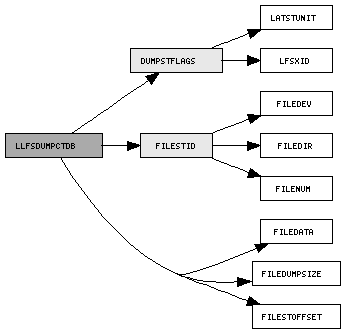

File Dump Data CTDB (LLFSDUMPCTDB) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x31B
002	SF		Sequence Count
004	Packet Length=411
006	Timestamp
00E	DUMPSTFLAGS dmpFlags
010	FILESTID fileId
014	FILESTOFFSET fileOffset
018	FILEDUMPSIZE dmpSize
01C	FILEDATA fileData[0-389]

Fields:

DUMPSTFLAGS (index)

Attribute(s):

Brief:  "File Dump Flags"

Instance(s):  dmpFlags

FILEDATA (index)

Attribute(s):

Brief:  "File Data Contents"

Instance(s):  fileData

FILEDUMPSIZE (index)

Attribute(s):

Brief:  "File Dump Current Size"

Instance(s):  dmpSize

FILESTID (index)

Attribute(s):

Brief:  "File Storage ID"

Instance(s):  fileId

FILESTOFFSET (index)

Attribute(s):

Brief:  "File Data Offset"

Instance(s):  fileOffset
