"File Dump CTDB" (APP/LFS)

ITOS Mnemonic:  LFSFILEDUMPC

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Dumps the contents of a file indicated by LFSFILEID to the CTDB interface. The file data is sent as a series of LFSDUMPCTBD telemetery packets. Valid devices for this telecommand are '/boot' (0), '/ram' (1), '/ee0' (2), and '/ee1' (3).

Layout:  (show detail; help)

File Dump CTDB (FileDumpCTDB) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x648:4
002	SF=3		Sequence Count
004	Packet Length=11
006	0	Function Code=4
008	NODETRANID flag
00A	PAD16 pad16
00C	FILEID fileId
010	Packet Checksum

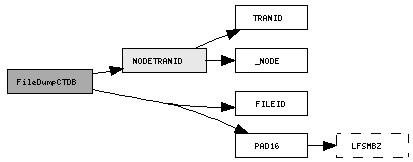

Fields:

FILEID (index)

Attribute(s):

Brief:  "File Storage ID"

Instance(s):  fileId

NODETRANID (index)

Attribute(s):

Brief:  "Compound of node and transaction ID"

Instance(s):  flag

Compound of node and transaction ID

PAD16 (index)

Attribute(s):  LFSMBZ

Brief:  "16-bit padding"

Instance(s):  pad16
