"RAD750 PCI Error Report" (APP/LCM)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

One LLCMMEMERR telemetry packet is generated for each RAD750 memory error reported by hardware if the LCMECLPCI error class is set to the LCMLEVDIA error level.

Layout:  (show detail; help)

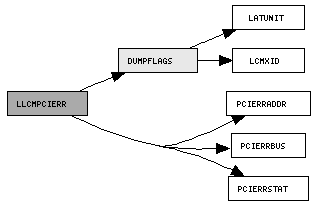

RAD750 PCI Error Report (LLCMPCIERR) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2D3
002	SF		Sequence Count
004	Packet Length=21
006	Timestamp
00E	DUMPFLAGS dmpFlags
010	PCIERRSTAT pciStatus
014	PCIERRBUS pciBus
018	PCIERRADDR pciAddr

Fields:

DUMPFLAGS (index)

Attribute(s):

Brief:  "Info Dump Flags"

Instance(s):  dmpFlags

PCIERRADDR (index)

Attribute(s):

Brief:  "RAD750 PCI Error Address Register"

Instance(s):  pciAddr

PCIERRBUS (index)

Attribute(s):

Brief:  "RAD750 PCI Bus Status Register"

Instance(s):  pciBus

PCIERRSTAT (index)

Attribute(s):

Brief:  "RAD750 PCI Error Status Register"

Instance(s):  pciStatus
