"Change task messaging level" (APP/LCM)

ITOS Mnemonic:  LCMMSGRESPONSE

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Change the severity level at which a task will emit MSG messages.

Layout:  (show detail; help)

Change task messaging level (MsgResponse) Telecommand Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=1	SH	APID=0x695:0
002	SF=3		Sequence Count
004	Packet Length=7
006	0	Function Code=0
008	ITC_NodeId nid								ITC_TaskId tid
00A	MSG_MsgLevel lvl								PAD8 pad
00C	Packet Checksum

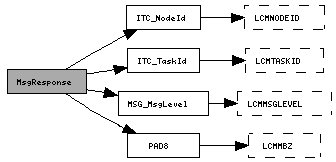

Fields:

ITC_NodeId (index)

Attribute(s):  LCMNODEID

Brief:  "ITC node ID"

Instance(s):  nid

ITC_TaskId (index)

Attribute(s):  LCMTASKID

Brief:  "ITC task ID"

Instance(s):  tid

MSG_MsgLevel (index)

Attribute(s):  LCMMSGLEVEL

Brief:  "Messaging level"

Instance(s):  lvl

PAD8 (index)

Attribute(s):  LCMMBZ

Brief:  "One byte of padding"

Instance(s):  pad
