"Register data" (APP/LRA)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

Returned register data

Layout:  (hide detail; help)

Register data (LRAREGDATA) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2F1
002	SF		Sequence Count
004	Packet Length=27
006	Timestamp
00E	SEQN seqn								COUNT count
010	RCMPNT cmpnt								RBLOCK block
012	RTEM tem								RCC cc
014	RRC rc								RFE fe
016	RREG reg								FILL fill
018	TMASK tmask
01A	NTEM ntem								NCC ncc
01C	NRC nrc								NFE nfe
01E	NREG nreg								WIDTH width
020	VALUE value

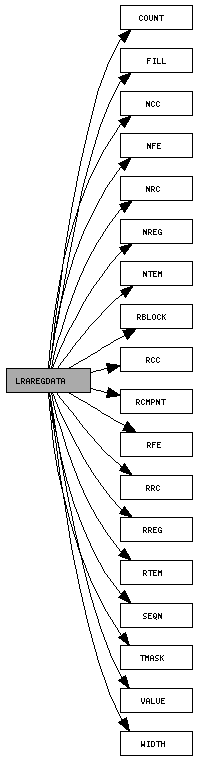

LRAREGDATA (pkt)
|  SEQN seqn (fld)
|  COUNT count (fld)
|  RCMPNT cmpnt (fld)
|  RBLOCK block (fld)
|  RTEM tem (fld)
|  RCC cc (fld)
|  RRC rc (fld)
|  RFE fe (fld)
|  RREG reg (fld)
|  FILL fill (fld)
|  TMASK tmask (fld)
|  NTEM ntem (fld)
|  NCC ncc (fld)
|  NRC nrc (fld)
|  NFE nfe (fld)
|  NREG nreg (fld)
|  WIDTH width (fld)
|  VALUE value (fld)

typedef struct _LRA_LRAREGDATA_Tlm {

    /* Telemetry header */
    char                 hdr[14];

    /* Sequence number */
    unsigned char        seqn;

    /* Packet count */
    unsigned char        count;

    /* Component */
    unsigned char        cmpnt;

    /* Register block */
    unsigned char        block;

    /* TEM number */
    unsigned char        tem;

    /* Cable controller */
    unsigned char        cc;

    /* Readout controller */
    unsigned char        rc;

    /* Front-end number */
    unsigned char        fe;

    /* Register */
    unsigned char        reg;

    /* Filler */
    unsigned char        fill;

    /* TEM mask */
    unsigned short       tmask;

    /* Number of TEMs */
    unsigned char        ntem;

    /* Number of CCs */
    unsigned char        ncc;

    /* Number of RCs */
    unsigned char        nrc;

    /* Number of FEs */
    unsigned char        nfe;

    /* Number of registers */
    unsigned char        nreg;

    /* Register width */
    unsigned char        width;

    /* Word of register values */
    unsigned short       value;

} LRA_LRAREGDATA_Tlm;

Fields:

COUNT (index)

Attribute(s):

Brief:  "Packet count"

Instance(s):  count

FILL (index)

Attribute(s):

Brief:  "Filler"

Instance(s):  fill

NCC (index)

Attribute(s):

Brief:  "Number of CCs"

Instance(s):  ncc

NFE (index)

Attribute(s):

Brief:  "Number of FEs"

Instance(s):  nfe

NRC (index)

Attribute(s):

Brief:  "Number of RCs"

Instance(s):  nrc

NREG (index)

Attribute(s):

Brief:  "Number of registers"

Instance(s):  nreg

NTEM (index)

Attribute(s):

Brief:  "Number of TEMs"

Instance(s):  ntem

RBLOCK (index)

Attribute(s):

Brief:  "Register block"

Instance(s):  block

RCC (index)

Attribute(s):

Brief:  "Cable controller"

Instance(s):  cc

RCMPNT (index)

Attribute(s):

Brief:  "Component"

Instance(s):  cmpnt

RFE (index)

Attribute(s):

Brief:  "Front-end number"

Instance(s):  fe

RRC (index)

Attribute(s):

Brief:  "Readout controller"

Instance(s):  rc

RREG (index)

Attribute(s):

Brief:  "Register"

Instance(s):  reg

RTEM (index)

Attribute(s):

Brief:  "TEM number"

Instance(s):  tem

SEQN (index)

Attribute(s):

Brief:  "Sequence number"

Instance(s):  seqn

TMASK (index)

Attribute(s):

Brief:  "TEM mask"

Instance(s):  tmask

VALUE (index)

Attribute(s):

Brief:  "Word of register values"

Instance(s):  value

One word of register values data out of many.

WIDTH (index)

Attribute(s):

Brief:  "Register width"

Instance(s):  width
