"CTDB MSG Output" (APP/LCM)

View Options: (help)

Focus:	Maintenance / Operation
Structures:	Abstract / Concrete

Context:

Description:

One LCMMSGOUT telemetry packet is optionally generated for each MSG output record.

Layout:  (show detail; help)

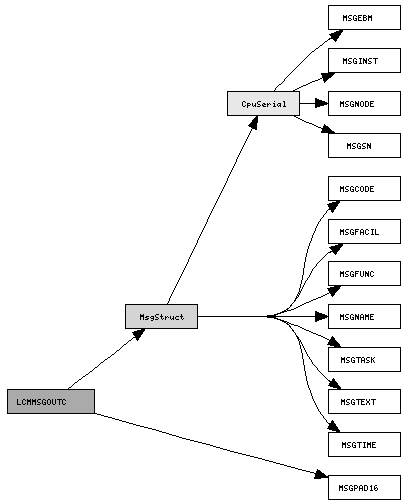

CTDB MSG Output (LCMMSGOUTC) Telemetry Packet Format
0x	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
000	Version=0			T=0	SH	APID=0x2D5
002	SF		Sequence Count
004	Packet Length=205
006	Timestamp
00E	MSGPAD16 msgPad
010	MsgStruct msgStruct

Fields:

MSGPAD16 (index)

Attribute(s):

Brief:  "Padding"

Instance(s):  msgPad

Padding

MsgStruct (index)

Attribute(s):

Brief:  "A complete MSG report"

Instance(s):  msgStruct

A complete MSG report
