ACD Trending from AcdPedestal runs

The AcdPedestal script measure the pedestal by taking random triggers with the HV off.
We keep track of the following values.

• Mean: the mean pha value from 100 random triggers
• RMS: the rms of the pha values from 100 random triggers

Note that the gains are set such that a MIP is about 400 pha counts above pedestal, and that the zero-suppression is set to 15 pha counts above pedestal.
The test points here include both "CPT" and "LPT" tests list in the full list of ACD test phases.

Comments:

• The output of this test was given in two different formats.
  Most of the test phases on had one type of output.
  For the first two sets of plots the reference is data taken at GSFC
  For the last two sets of plots the reference is data taken at SLAC

• The pedestals show quite a bit of temperature dependence. This has been quantified. Link to follow.
• The increase in RMS in phases 46 is b/c the HV bias was on in that test by mistake


Plot of values	Comments	Plot of diff W.R.T. reference

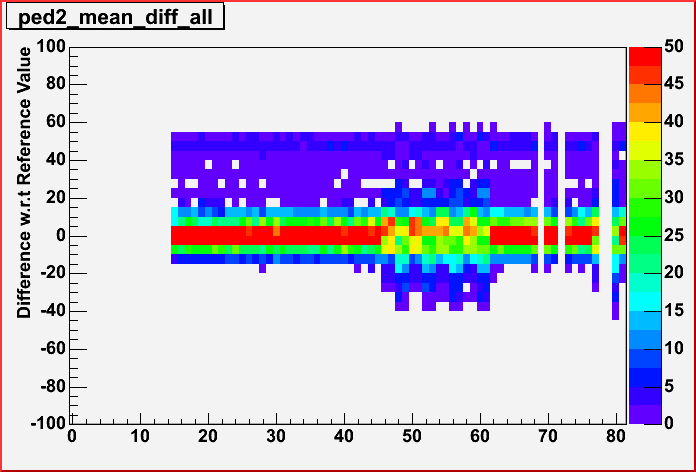

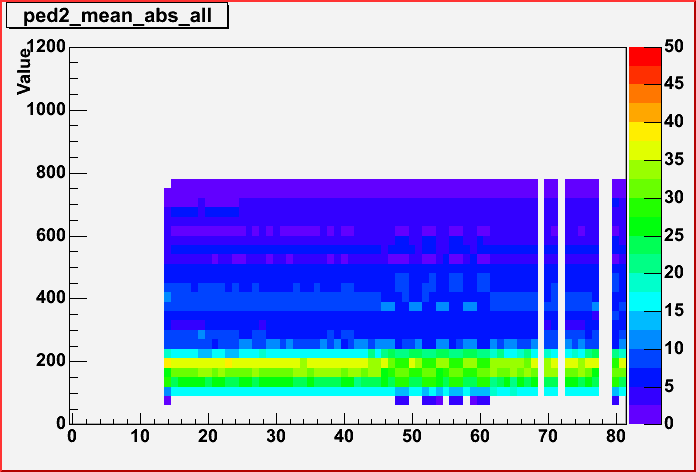

	Pedestal value Range 0-1200

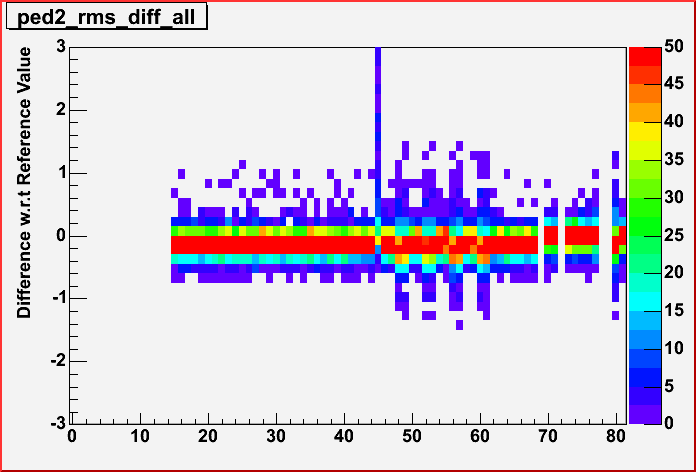

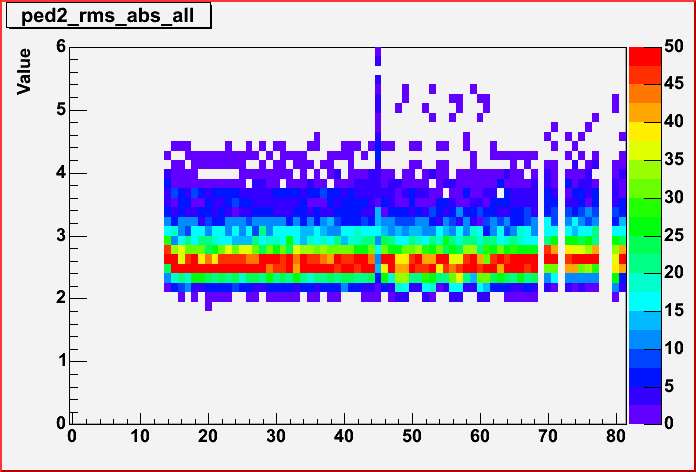

	RMS of pedestal data Range: 0 - 6

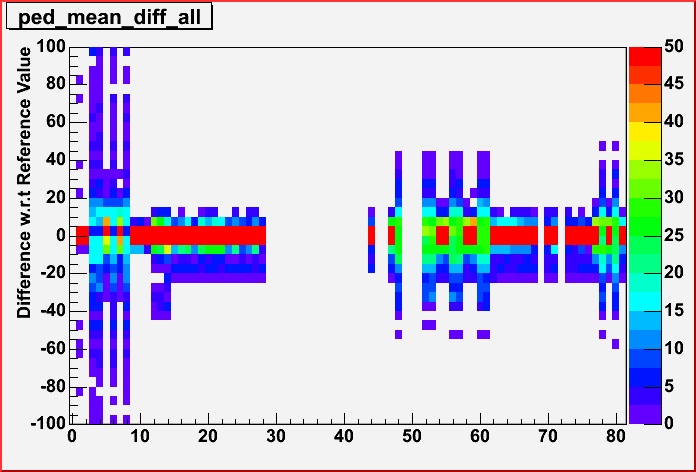

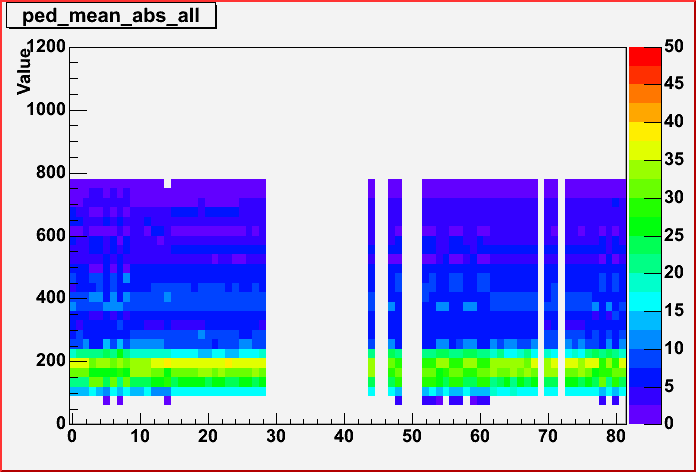

	Pedestal value Range 0-1200

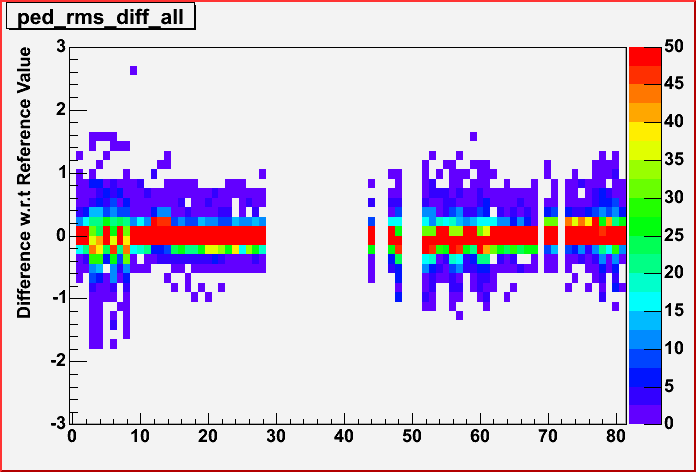

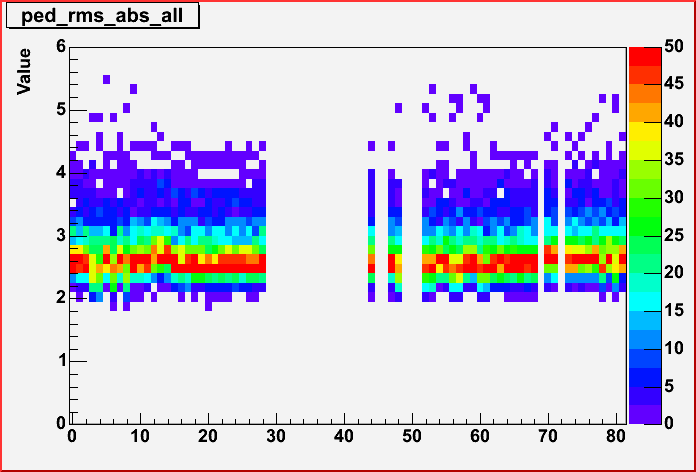

	RMS of pedestal data Range: 0 - 6
